本產品為香港代理行貨，享有 QSC 香港行貨保養，詳情請參考下面 【保養資料】
由於體積問題，本產品不能發到順豐智能櫃 / 順豐站，下單前請提供地址與客服專員聯絡，查詢送貨詳情
- - - -
專為娛樂表演者及音頻技術人員設計，結合尖端技術與穩定性能，讓您輕鬆應對各種現場和錄音環境。無論是小型舞台還是大型音樂會，它都是您的最佳夥伴。
產品亮點：
-
完美匹配各類揚聲器
功率專為最受歡迎的揚聲器優化，讓 4 歐姆與 8 歐姆的揚聲器系統發揮最大聲學動態性能。 -
靈活多元的輸入與輸出
- 輸入： XLR、1/4吋 TRS 和（Phono） 輸入端口。
- 輸出：Speakon® combo accepts 1/4-inch (TS) plugs or Speakon 2- and 4-pole plugs (connects 2 poles only). Binding posts support all other speaker wiring systems
-
輕量化設計，便於攜帶
- 僅重 26 磅（12.5 公斤），輕鬆便攜，適用於各種緊湊型機架（最小深度僅 10.1 英吋/257 mm）。
-
專業音量控制與保護技術
- 防護技術 GuardRail™： 自動偵測過載或溫度異常並主動保護設備與揚聲器，避免中斷演出或損壞設備。
- 配備精確的 增益控制刻度，確保靈敏度完全匹配。
- 前面板 LED 顯示燈 實時監控功率、信號與削波狀態，直觀掌控系統運作。
可靠、高效、值得信賴

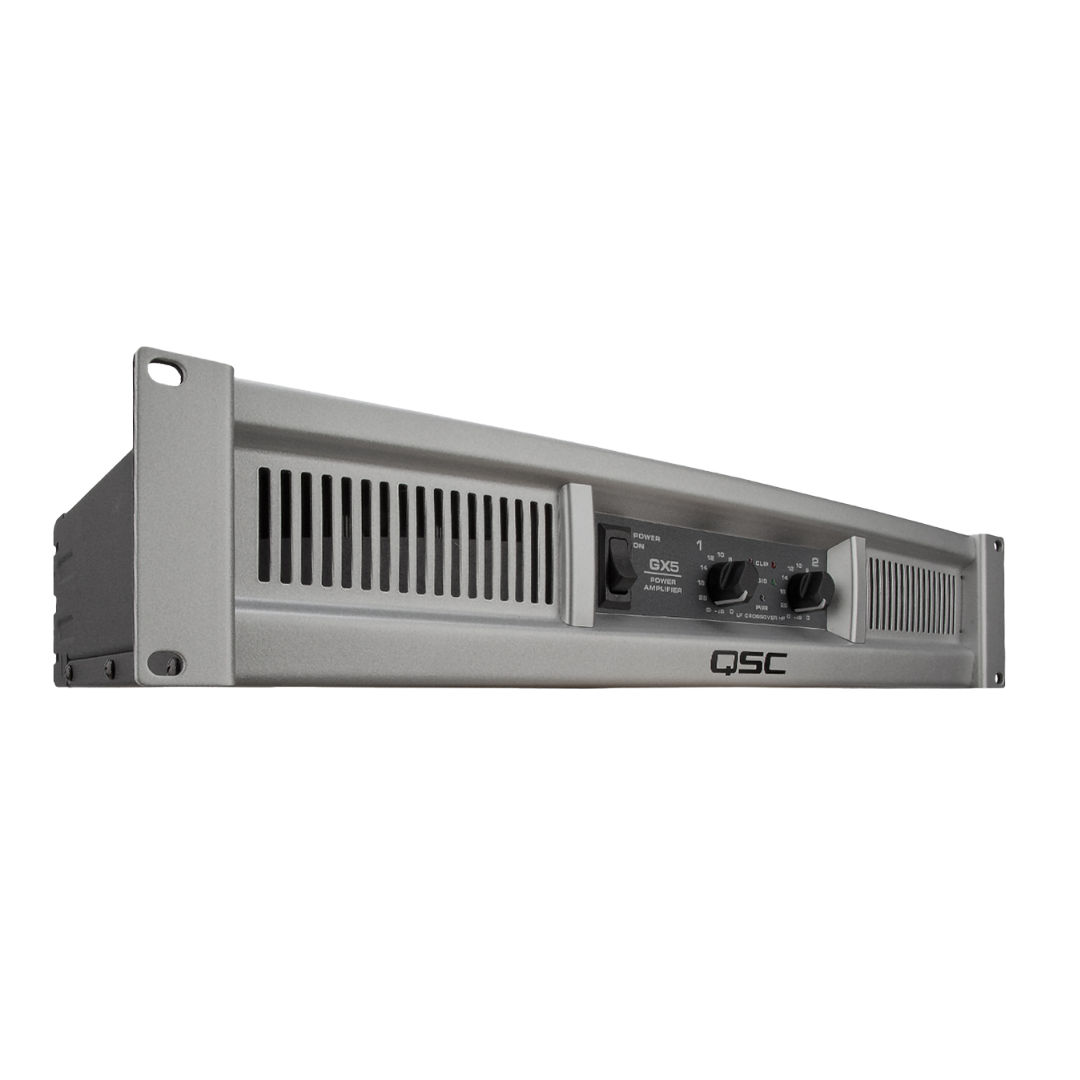

QSC GX5 功率放大器以穩定耐用著稱，能應對最嚴苛的表演需求。無論是現場表演、音樂製作，還是專業演講活動，都能滿足您的所有技術需求，為音質保駕護航。
- - - -
QSC GX5 Amplifier Specifications
Performance Specifications
-
Output Power per Channel
- 8Ω continuous, both channels driven: 500 W
- 4Ω continuous, both channels driven: 700 W
-
Distortion (1 dB below rated power, 1 kHz)
- 8 ohms: less than 0.02%
- 4 ohms: less than 0.05%
-
Signal to Noise (20 Hz - 20 kHz): 100 dB
-
Input Sensitivity: 1.2 V rms
-
Voltage Gain: 34.4 dB
-
Output Circuitry: 2-tier Class H
-
Frequency Response: 20 Hz–20 kHz, +0, -1 dB
-
Dynamic Headroom (4 ohms): 2 dB
Power Requirements
- Power Consumption (1/8 power, pink noise at 4 ohms, 120V): 6 A
Connectivity
- Input Impedance: Greater than 20 kΩ (balanced)
- Maximum Input Level: +24 dBu (16 V rms)
Input Connectors (each channel)
- 3-pin XLR and 1/4-inch TRS, balanced, parallel
- Phono, unbalanced
Output Connectors (each channel)
- Speakon®
- 1/4-inch
- Binding posts
Protection Features
- Short circuit protection
- Open circuit protection
- Thermal protection
- RF protection
- Load protected against DC faults
Control Panel
Front Panel Controls and Indicators
- Gain controls, 21 detents
- Red CLIP LEDs (proportional, 0.1% THD threshold)
- Green SIGNAL LEDs (threshold 35 dB below clipping)
- Blue POWER LED (AC on)

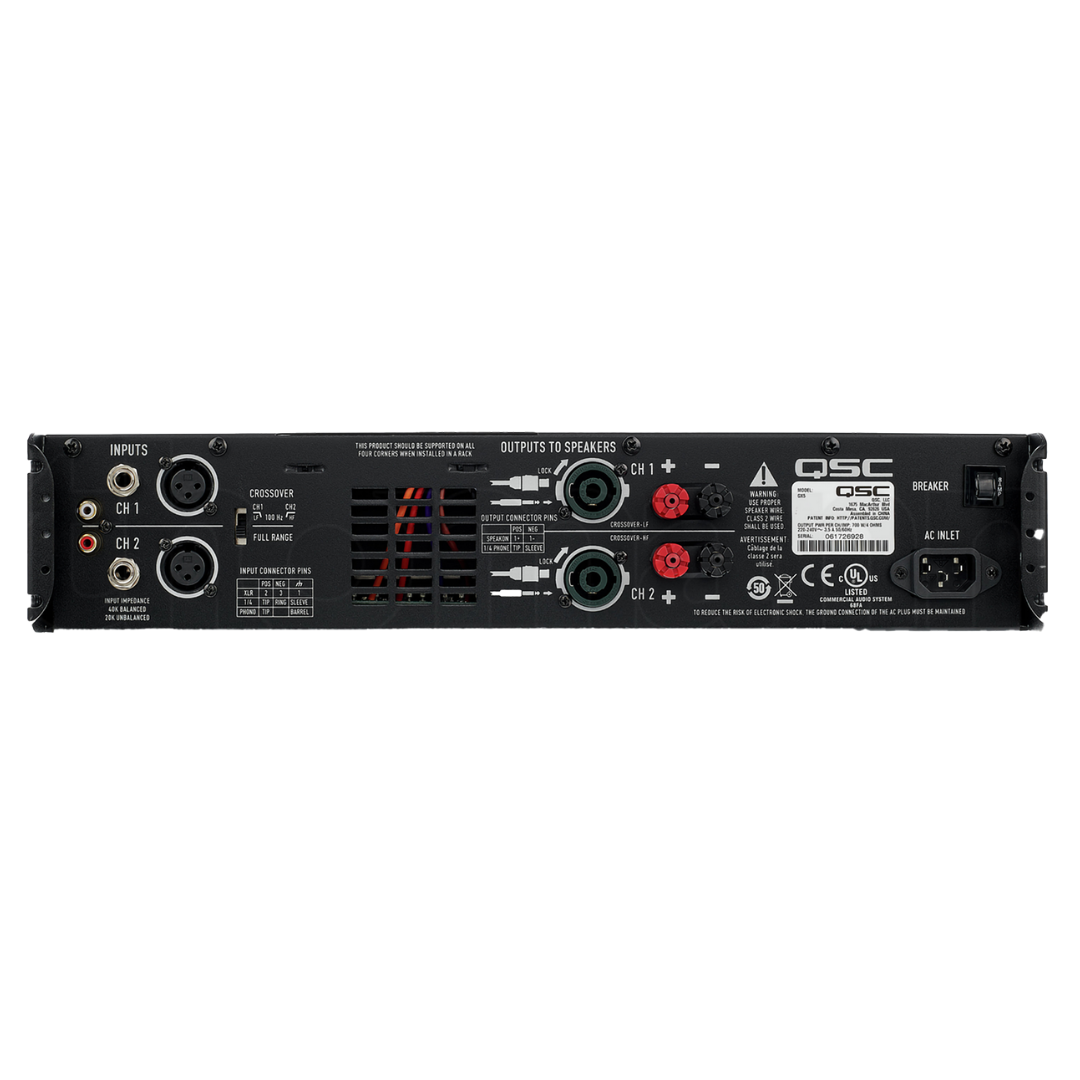

Rear Panel Controls
- Full Range / Crossover switch
- 100 Hz, 3rd order LP (sub)
- 2nd order HP (top)
Physical Specifications
Dimensions
- Product (H×W×D): 89 × 483 × 257 mm (3.5 × 19 × 10.1 in)
- Carton (H×W×D): 610 × 380 × 153 mm (24 × 15 × 6 in)
Weight
- Net Weight: 12.6 kg / 28 lb
- Shipping Weight: 14.5 kg / 32 lb
