本產品為香港代理行貨，享有香港行貨保養，詳情請參考 【保養資料】
- - -
產品重點

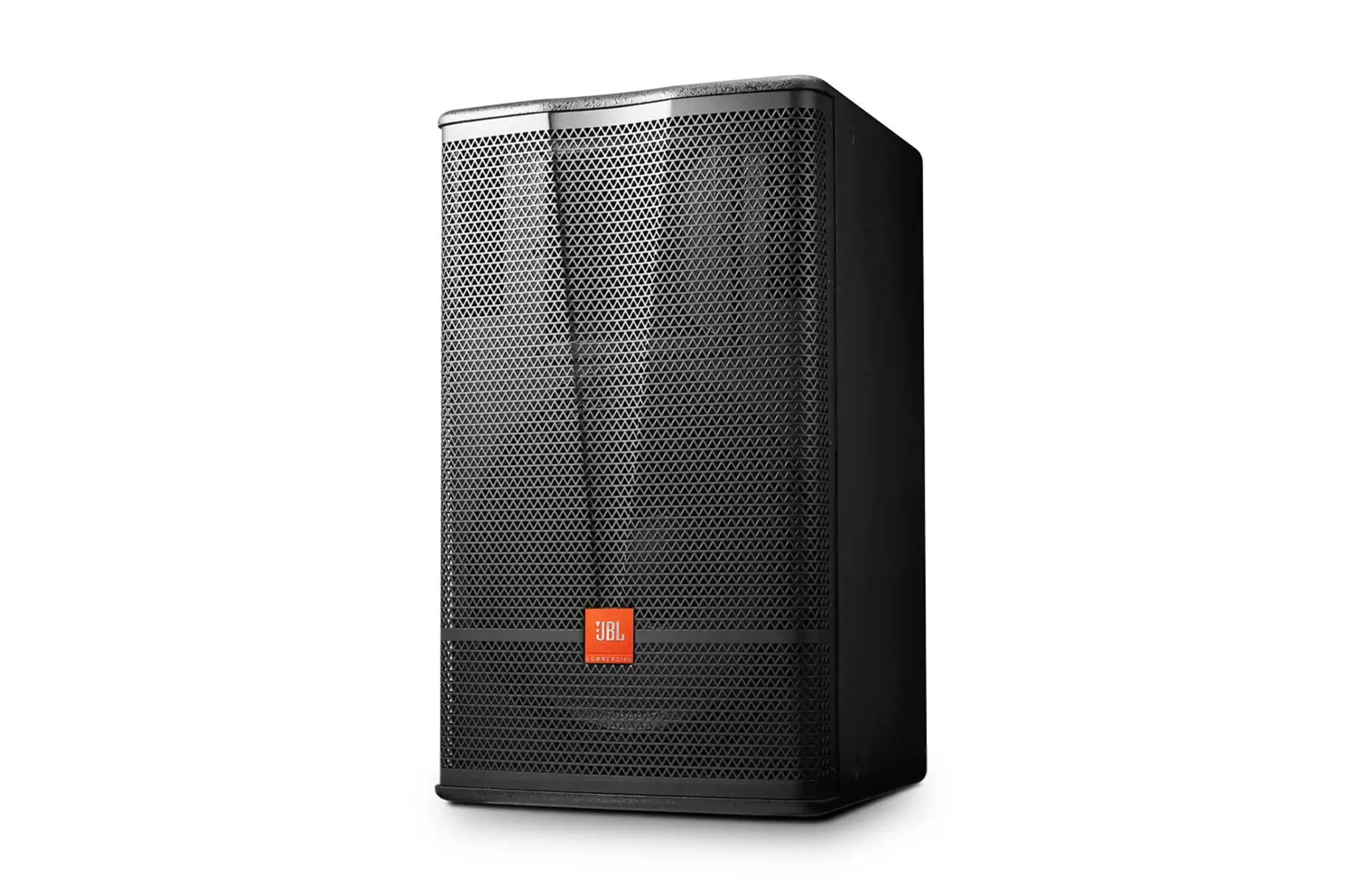

- 15 吋兩路低音反射式全頻揚聲器
- 15 吋防潮低音單元設計
- 1 吋 polymer diaphragm compression driver
- 100° × 70° 覆蓋角度，適合直向及橫向安裝
- 15 mm medium density fiberboard 箱體
- 1.5 mm 粉末塗層鋼製網罩
- 可旋轉 JBL COMMERCIAL 標誌
- 適合餐廳、食堂、咖啡店、會議室、禮堂及課室等安裝應用
- 可作配合超低音使用之高性能 satellite speaker。
- - -
TECHNICAL SPECS
- System Type: 15”, 2-way, bass-reflex
- Frequency Range (-10dB): 45 Hz – 20 kHz
- Frequency Response (±3 dB): 75 Hz – 18 kHz
- System Sensitivity (1w @ 1m): 98 dB
- Nominal Impedance: 8 Ω
-
Maximum SPL (1m):
123 dB continuous average (129 dB peak) -
Power Rating (Continuous/Program/Peak):
350 W/700 W/1400 W
- Coverage: 100° × 70° (H × V)
- LF Driver: 1 × 15” woofer
- HF Driver: 1 × 2414H-C tweeter
- Enclosure: Trapezoid, 15 mm plywood
- Suspension: 15 × M10 threaded suspension points
-
Finish:
Textured paint, black. White (-WH) available upon request. - Grille: Powder coated 1.5mm perforated cold rolled steel
-
Input Connector:
Dual NL4MP Neutrik Speakon® in parallel for loop-through
-
Dimensions (H x W x D):
680 mm × 420 mm × 445 mm (26.8 in × 16.5 in × 17.5 in) - Net Weight: 21.0 kg (46.3 lbs)**
