QSC KS118 18 吋主動式超低音喇叭 (subwoofer)｜3600W Class D・高輸出低頻・適合流動演出及活動製作
Choose options
本產品為香港代理行貨，享有 QSC 香港行貨保養，詳情請參考下面【保養資料】
由於體積問題，本產品不能發到順豐智能櫃 / 順豐站，下單前請提供地址與客服專員聯絡，查詢送貨詳情
- - -
QSC KS118 是一款 18 吋主動式超低音喇叭，定位為高輸出低頻方案，適合流動演出、DJ、AV 製作、clubs 及 performance venues 等應用。它採用 18 吋 direct radiating driver，配合 3600 Watt Class D 擴音模組，可提供高聲壓與具動態感的低頻重播表現，適合需要更完整低頻能量與現場衝擊感的系統配置。
內建的 DSP 最佳化並保護系統效能，還提供進階功能，例如將兩個裝置以心形排列方式配置的能力。 堅固的外殼非常易於運輸，配有舒適的把手和四個低噪音滾輪。 一個 M20 螺紋桿座可容納 35 毫米桿，以便輕鬆地與全音域揚聲器進行垂直部署。
- - -
Features
- Very high output with impressive low frequency performance
- 3600 Watt Class D amplifier module
- 18 inch (460 mm) long excursion direct radiating driver
- Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
- Selectable DEEP™ mode for extremely low frequency extension
- Adjustable crossover and delay
- Scenes for commonly-used applications that can be saved/recalled
- Refined, professional and elegant appearance in any application
- Rugged painted wood enclosure for lasting durability
- Vertical or horizontal deployment (M20 threaded pole receiver for vertical setup)
- Four low-noise, heavy-duty casters
- Optional transport cover, KS-LOC security cover and 35 mm loudspeaker pole accessories available
- 6 Year Warranty when registered within 30 days of purchase
- - -
-
Model
KS118 -
Configuration
Direct Radiating -
LF Transducer
460 mm (18 in), Cone -
Frequency Response (-6 dB)
41 Hz - 98 Hz -
Frequency Range (-10 dB)
35 Hz - 111 Hz -
Nominal Coverage Angle
Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units) -
Maximum Rated SPL1
136 dB @ 1 m (peak) -
Amplifier
Class D
3600W (peak) -
Cooling
Low-noise, variable speed fan -
Controls
Power On/Off
Gain Control
Rotary encoder
2 × selection buttons -
Indicators
2 × Power LED (front and rear)
Input Signal LED
Limiter active LED -

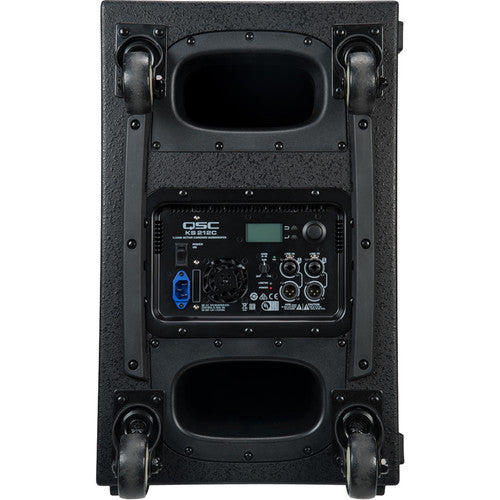

Connectors
2 × locking XLR/F ¼ inch combo
2 × XLR/M (Loop-thru Output)
1 × locking IEC power connector -
AC Power Input
Universal power supply 100 – 240 VAC, 50 – 60 Hz -
AC Power Consumption (⅛ power)
100 VAC, 3.6 A / 120 VAC, 3.0 A / 240 VAC, 1.7 A -
Enclosure Details
-
Enclosure
15 mm birch plywood -
Color
Black (RAL 9011) -
Grille
16-gauge Black Powder Coated Steel -
Speaker Dimensions (H×W×D)
640 × 520 × 785 mm
25.2 × 20.5 × 30.9 in -
Carton Dimensions (H×W×D)
572 × 743 × 896 mm
22.5 × 29.3 × 35.3 in -
Net Weight
47 kg / 104 lb (including casters) -
Shipping Weight
56.5 kg / 124.6 lb -
Regulatory
CE, WEEE, UL, China RoHS, RoHS II, FCC Class B -
Included Accessories
4 × Low-Noise, Heavy Duty Casters
