本產品為香港代理行貨，享有 Tascam 香港行貨保養，詳情請參考 【保養資料】

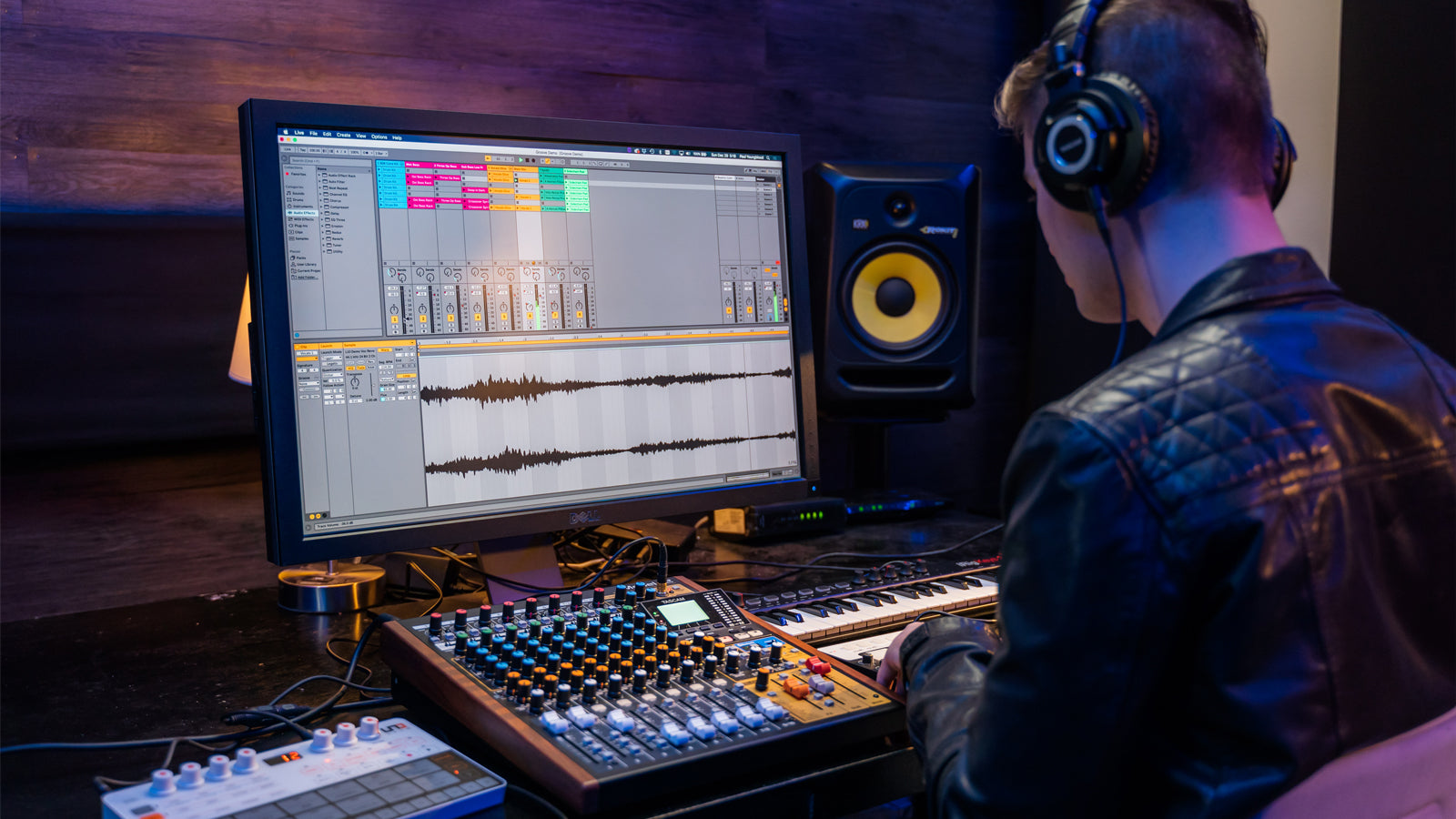

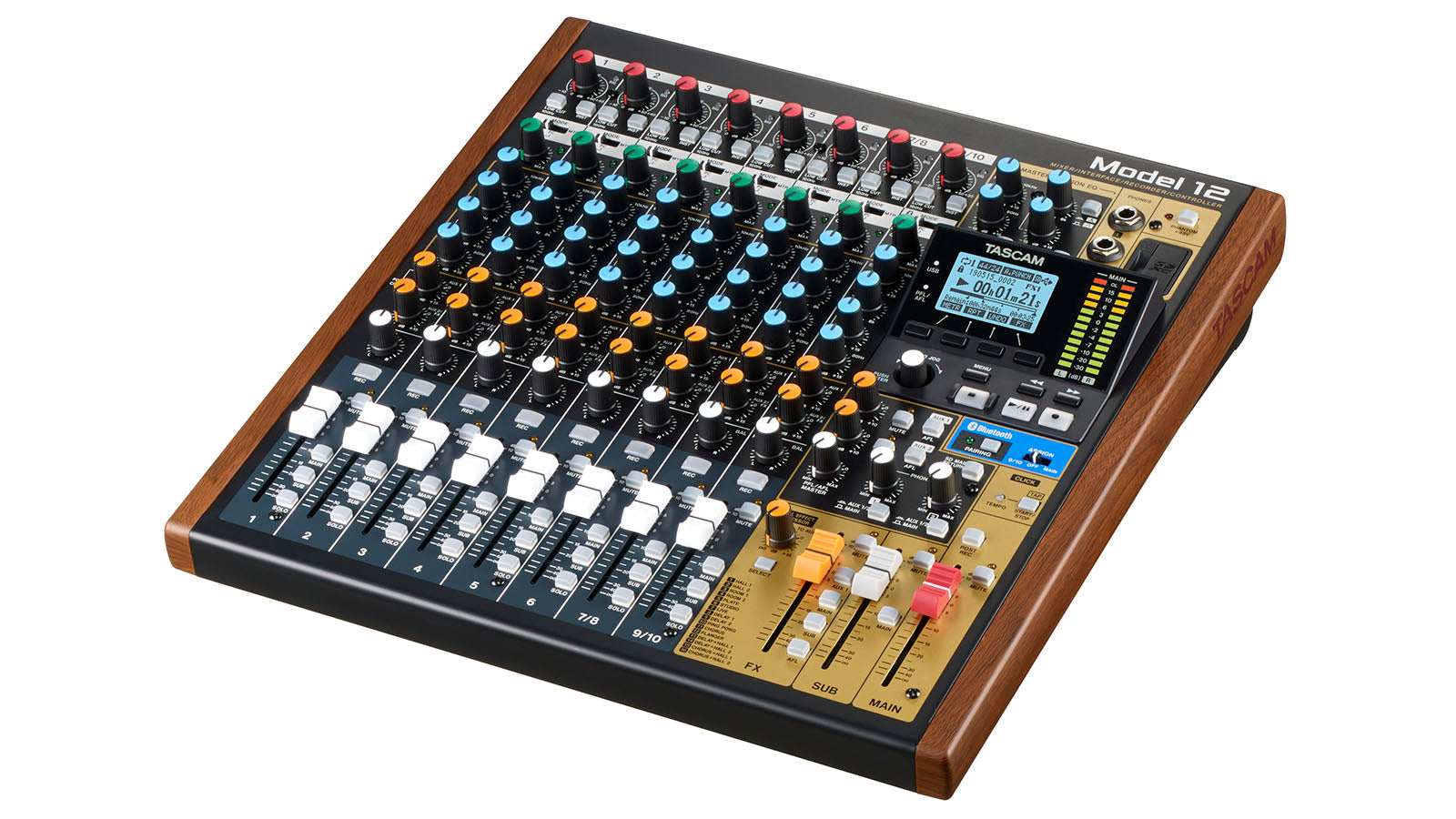

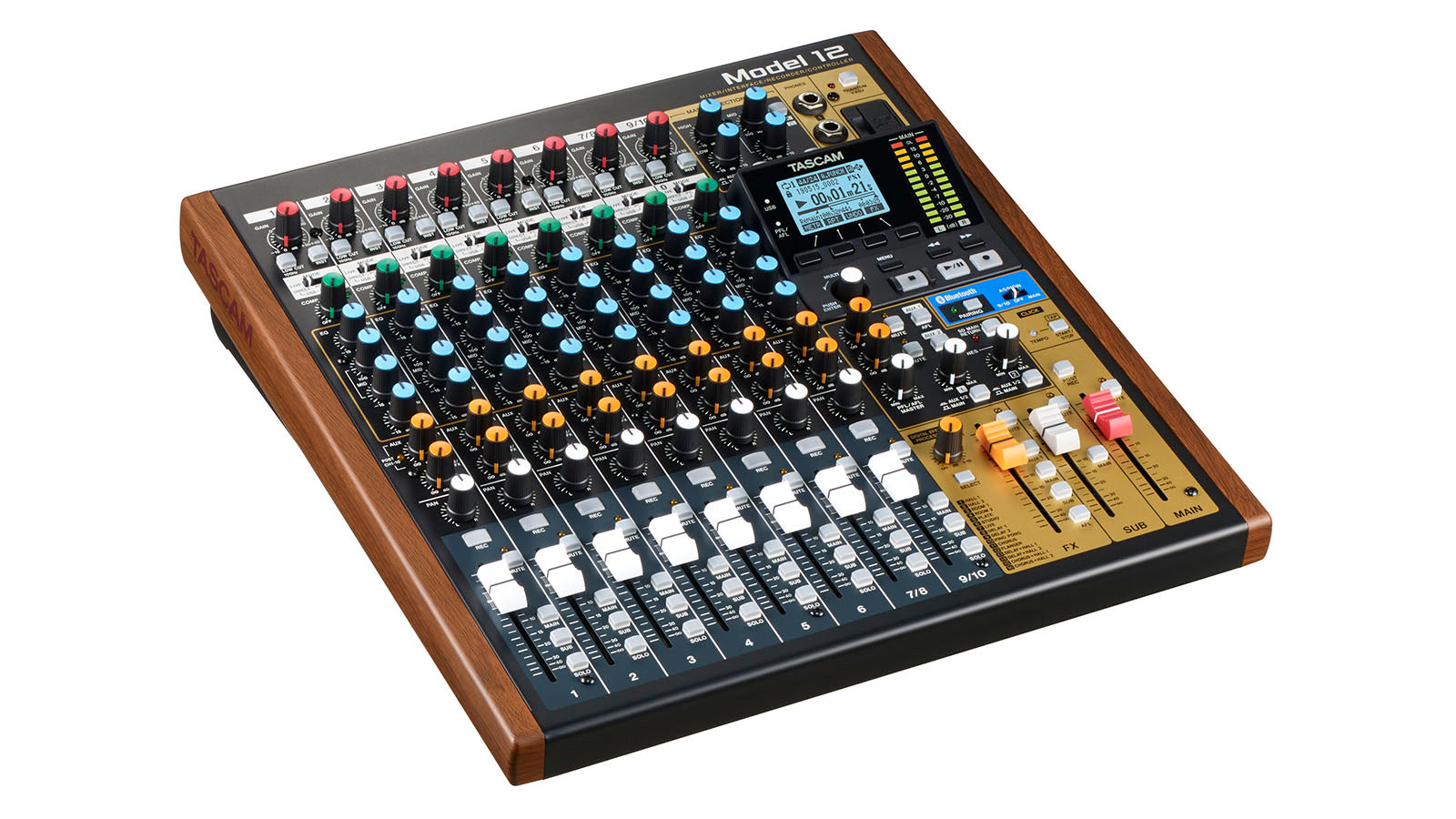

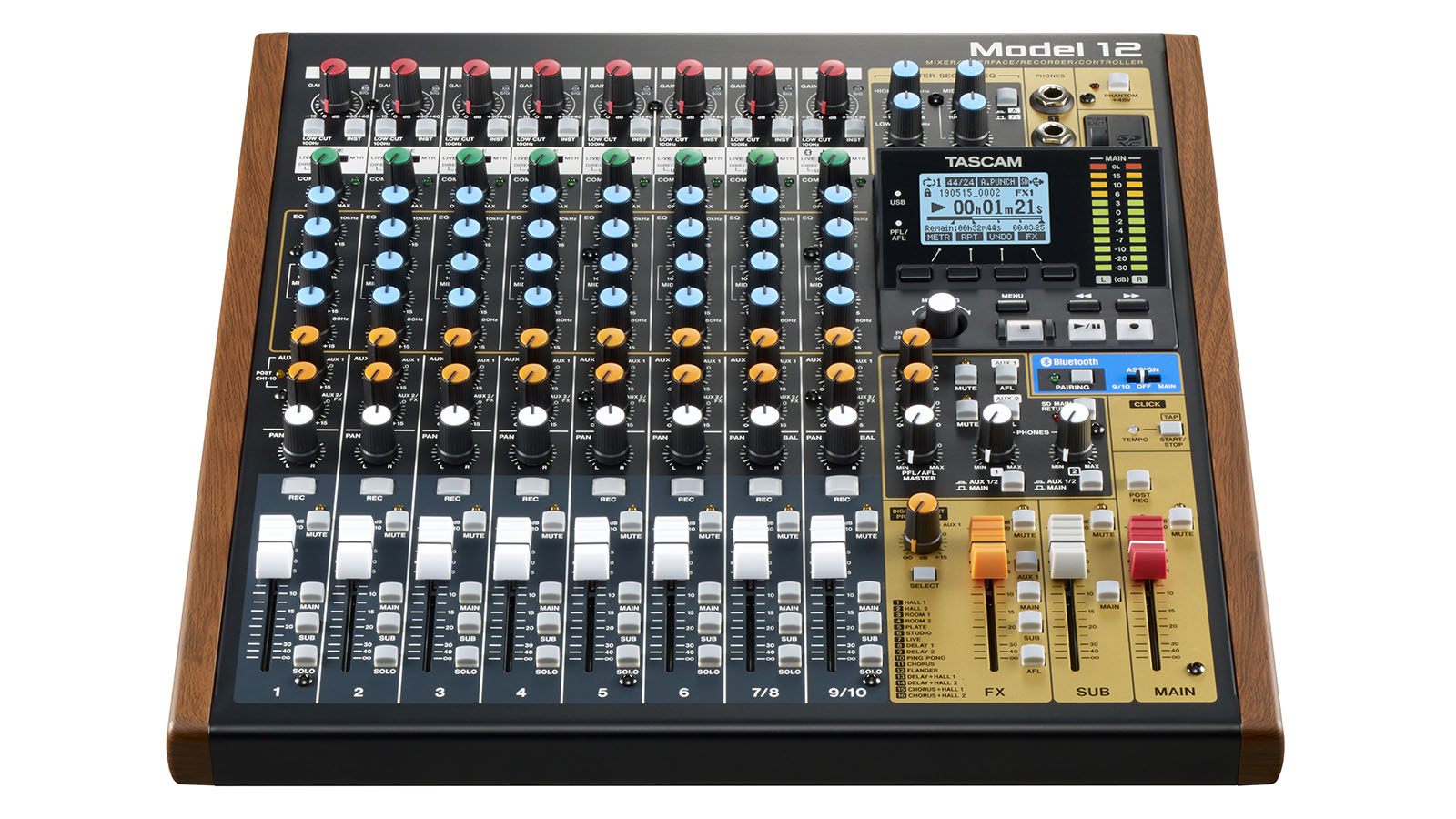

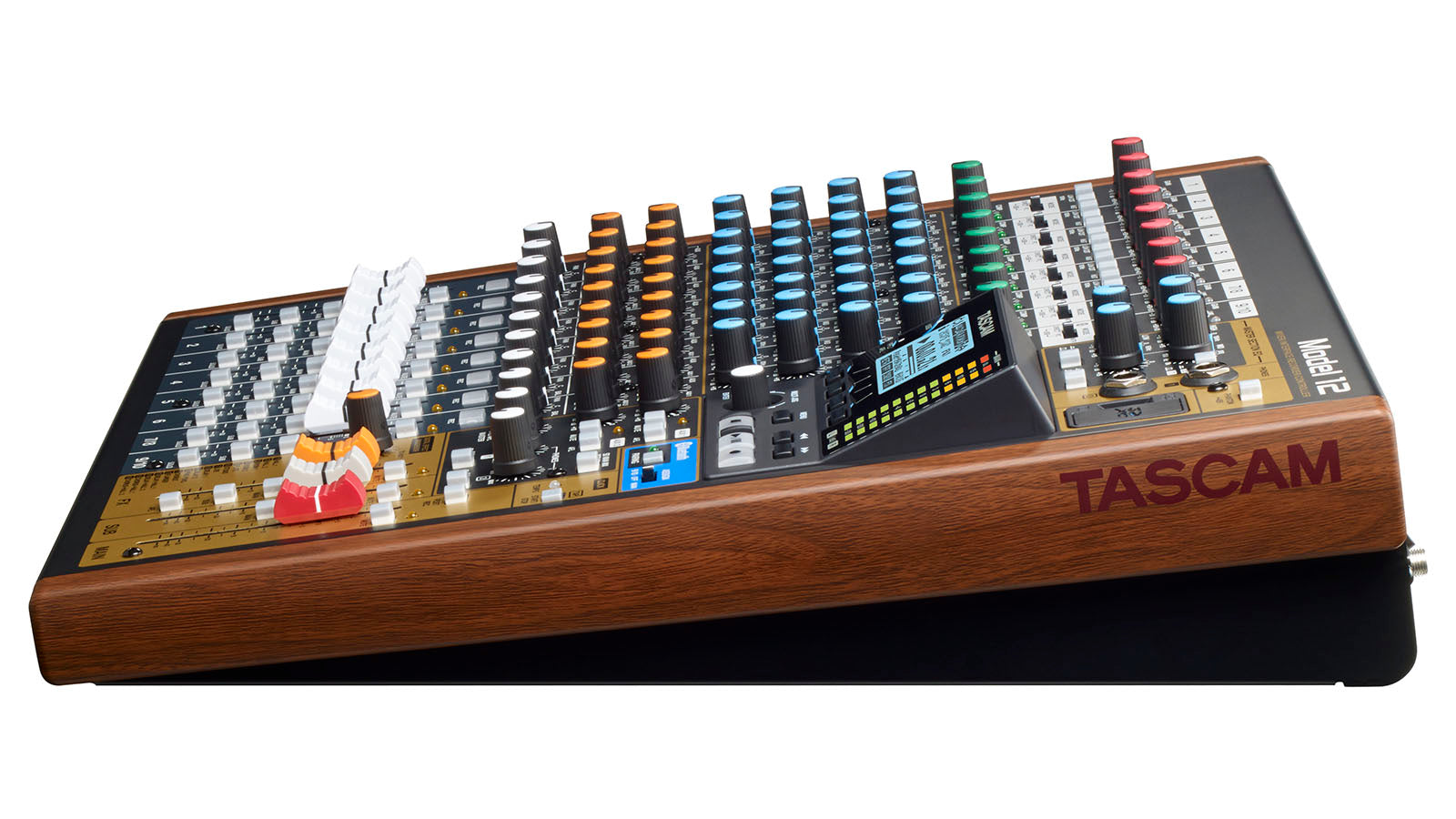

TASCAM Model 12是一款專業的數位混音台，設計用於音樂製作、現場演出及播客錄製。
TASCAM Model 12解決了用戶在音樂製作過程中對簡易錄音和混音的需求，提供多功能混音台，無需依賴電腦即可完成高品質錄音。
這款混音台結合了高品質的Ultra HDDA麥克風前置放大器、每通道的壓縮器及三頻段均衡器，提供卓越的音質和靈活的控制選項。Model 12不僅支援將多軌音頻直接錄製到SD卡，還可作為USB音頻介面連接至電腦，實現全面的DAW控制功能。
主要特徵
- 配備多種輸入，以滿足幾乎任何工作流程需求，包括 8 個 XLR 麥克風輸入（支持幻象供電）、8 個 Hi-Z 樂器輸入、總共 10 個線性輸入、藍牙 5.0 及 3.5mm TRRS 智能手機輸入
- 支援同時將最多 12 條音軌錄製到 SD 卡，並可進行最多 10 條音軌的回放
- 可作為 12 輸入/10 輸出音頻接口，與 DAW 軟體連接（USB Type-C 接口）
- 超高清獨立放大器技術，捕捉豐富、細緻的音頻，同時具備超低噪音水平
- 通過 HUI/MCU 協議模擬提供簡單的 DAW 控制
- 內建音效部分，可添加專業水準的混響、延遲、合唱及其他音效
其他特點
- 雙耳機輸出，支援兩個獨立混音
- 所有輸入通道均配備 1 顆旋鈕壓縮器和 3 波段均衡器
- 具靈活的路由能力，配備 MAIN L-R 和 SUB L-R 混音總線及雙輔助發送
- 便於與視頻同步，具可調輸出延遲（0-2000ms）
- 可選擇前/後推子模式及現場獨奏功能
- 支援雙腳踏開關（TRS 接口），可實現無需雙手控制傳輸、效果及其他功能
- 內建節拍器，具專用點擊輸出及點擊節拍支持
包裝內容包括：
- TASCAM Model 12 x1
- AC適配器（TASCAM PS-M1524）x1
- AC適配器電源線 x1
- USB數據線（1米）x1
- TRRS數據線（1米）x1
- 使用手冊（包含保固）
- - - -
SPECIFICATIONS
-
Supported Media:
- SD: 512MB to 2GB
- SDHC: 4GB to 32GB
- SDXC: 64GB to 512GB
- Class 10 or higher required
-
File System:
- SD card: FAT16
- SDHC card: FAT32
- SDXC card: exFAT
-
Recording File Format: WAV (BWF)
-
Playback Format: WAV, BWF
-
Sampling Frequency: 44.1k / 48k Hz
-
Bit Depth: 16 / 24 bit
-
Maximum Recordable Channels: 12 channels (10 channels + 2 stereo mix)

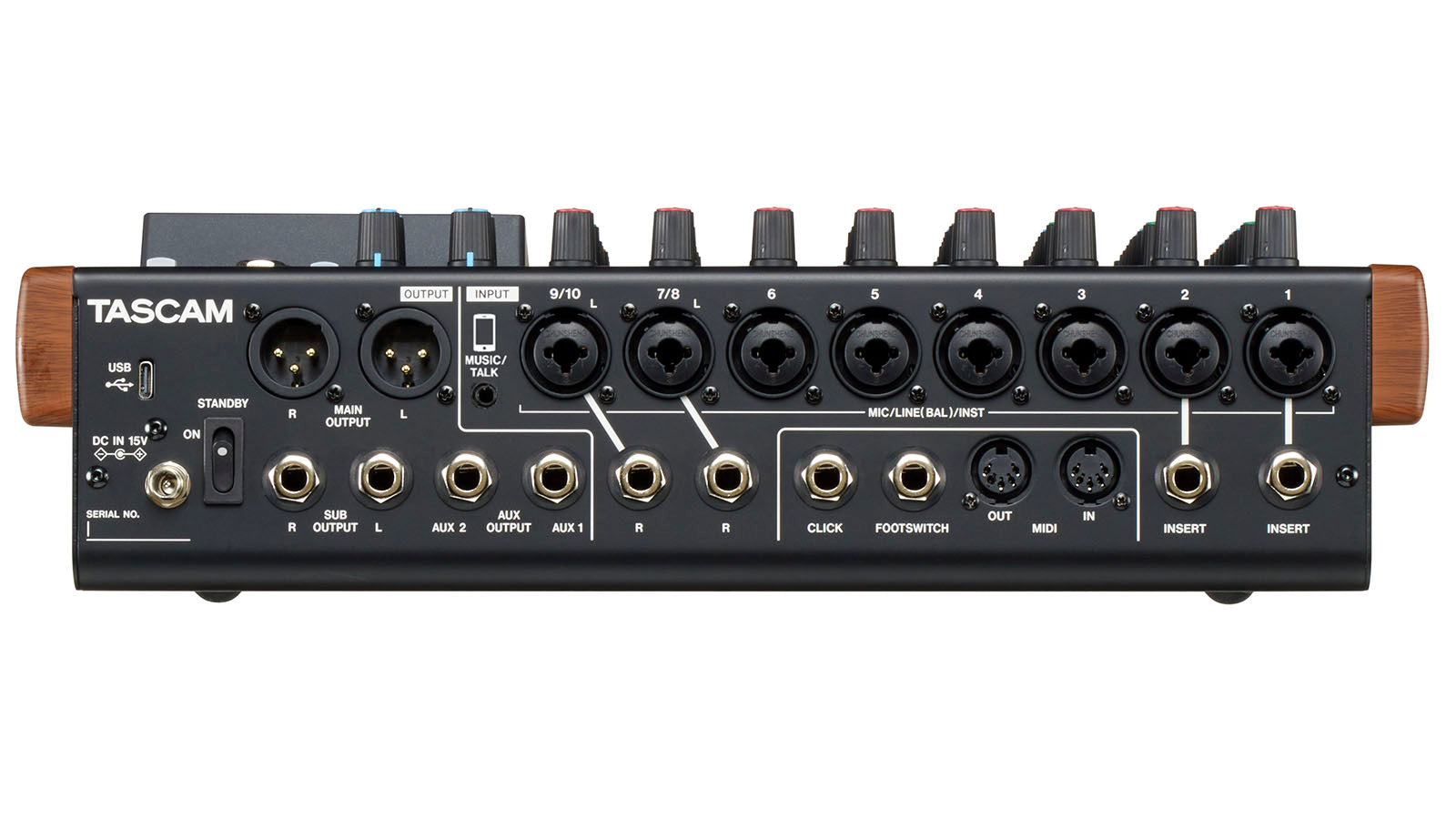

Audio Inputs:
-
MIC IN:
- Channels: CH1 to 6, 7/8, 9/10
- Connector: XLR 3-31 (Balanced)
- Maximum Input Level: +10dBu
- Nominal Input Level: -8dBu
- Minimum Input Level: -58dBu
- Gain Adjustable Range: 0 to 50dB
- Input Impedance: 1.8k ohm
- Phantom Power Supply: +48V
-
LINE IN:
- Channels: CH1 to 10
- Connector: 1/4" (6.3mm) TRS Phone jack (Balanced)
- Maximum Input Level: +22dBu
- Nominal Input Level: +4dBu
- Gain Adjustable Range:
- CH1 to 6: -10 to +40 dB
- CH7/8 and 9/10: -20 to +30 dB
- Input Impedance: 22k ohm
-
INST IN:
- Channels: CH1 to 6, 7, 9
- Connector: 1/4" (6.3mm) TS Phone jack (Unbalanced)
- Maximum Input Level: +13.8dBV
- Nominal Input Level: -4.2dBV
- Gain Adjustable Range:
- CH1 to 6: -10 to +40 dB
- CH7 and 9: -20 to +30 dB
- Input Impedance: 1M ohm
-
INSERT:
- Channels: CH1 and 2
- Connector: 1/4" (6.3mm) TRS Phone jack
- Send (Tip) Maximum Output Level: +18dBu
- Return (Ring) Maximum Input Level: +18dBu
- Nominal Output/Input Level: 0dBu
- Input Impedance: 5k ohm
-
MUSIC/TALK:
- Channels: CH9/10
- Connector: 1/8" (3.5mm) TRRS jack (Unbalanced)
- Maximum Input Level: +8dBV
- Nominal Input Level: -10dBV
- Input Impedance: 10k ohm
Outputs:
-
MAIN OUTPUT:
- Connector: XLR 3-32 (Balanced)
- Maximum Output Level: +22dBu
- Nominal Output Level: +4dBu
- Output Impedance: 200 ohm
-
SUB OUT, AUX OUT:
- Connector: 1/4" (6.3mm) TRS Phone jack (Balanced)
- Maximum Output Level: +16dBu
- Nominal Output Level: -2dBu
- Output Impedance: 200 ohm
-
PHONES OUT:
- PHONES 1 and 2
- Connector: 1/4" (6.3mm) Stereo Phone jack
- Maximum Output Level: 45mW + 45mW (32 ohm loaded)
- Working Impedance: 16 to 250 ohm
Control Input / Output:
-
USB:
- Connector: USB Type-C
- Transfer Format: USB2.0 High-Speed
- Format: Mass-storage class/USB Audio Class 2.0
-
CLICK:
- Connector: 1/4" (6.3mm) TS Phone jack
-
FOOTSWITCH:
- Compatible with TASCAM RC-1F Foot Switch
- Connector: 1/4" (6.3mm) TRS Phone jack
-
MIDI OUT / IN:
- Connector: 5-pin DIN
- Format: Standard MIDI
-
USB Audio:
- Sampling Rate: 44.1k / 48k Hz
- Bit Depth: 16 / 24 bit
- Maximum INPUT: 12 channels
- Maximum OUTPUT: 10 channels
-
Bluetooth®:
- Version: 5.0
- Output Class: Class 2 (approx. 33 ft. / 10 m)
- Supported Profile: A2DP
- Supported A2DP Codecs: SBC, AAC
- A2DP Content Protection: SCMS-T
Channel EQ:
- Low-Cut: 100Hz, -18dB / Octave
- Hi-Shelving: +15dB / -15dB, 10kHz cutoff
- Mid-Peaking: +15dB / -15dB, 100Hz to 8kHz Variable, Q Fix 0.5
- Low-Shelving: +15dB / -15dB, 80Hz cutoff
Master Section EQ:
- Hi-Shelving: +15dB / -15dB, 10kHz cutoff
- MID-Peaking: +15dB / -15dB, 100Hz to 8kHz Variable, Q: 0.5/5
- Low-Shelving: +15dB / -15dB, 60Hz cutoff
Internal Effects:
- Types include: HALL 1, HALL 2, ROOM 1, ROOM 2, PLATE, STUDIO, LIVE, DELAY 1, DELAY 2, PING PONG, CHORUS, FLANGER, and combinations.
Power:
- Voltage: AC 100 to 240V, 50/60Hz
- Power Consumption: 16W
Dimensions:
- Size: 343(W) × 98.8(H) × 360(D) mm
- Size: 13.5(W) × 3.9(H) × 14.2(D) inch
Weight: 4.3 kg / 9.48 lb
Operating Temperature: 5 to 35 °C / 41 to 95 °F
Included Items:
- AC adapter (TASCAM PS-M1524)
- Cord for AC adapter (JAPAN USA/EUROPE/AUSTRALIA)
- USB cable (1m)
- TRRS cable (1m)
- Owner's manual (with warranty)
- TASCAM ID registration guide
