本產品為香港代理行貨，享有 Tascam 香港行貨保養，詳情請參考 【保養資料】
- - - -

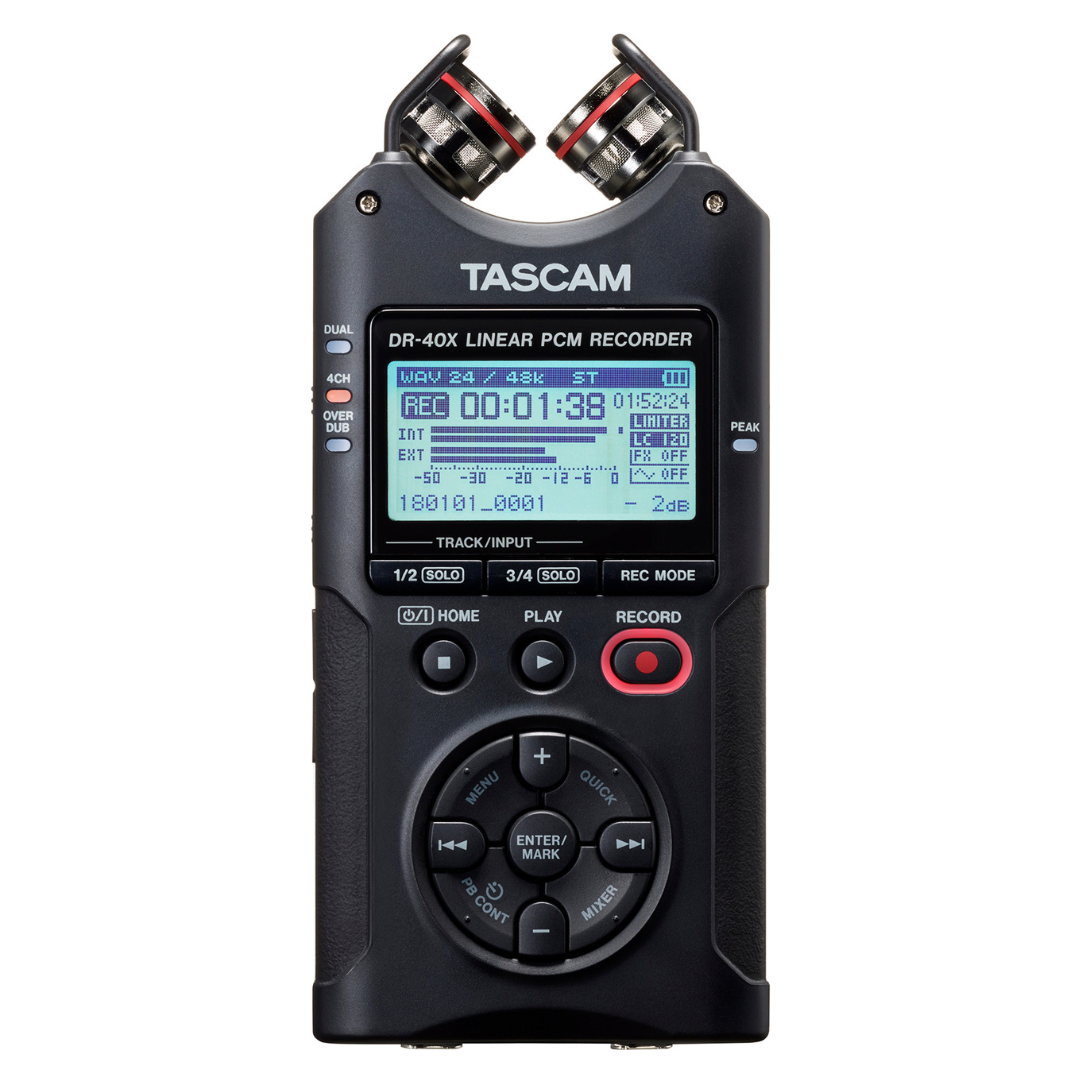

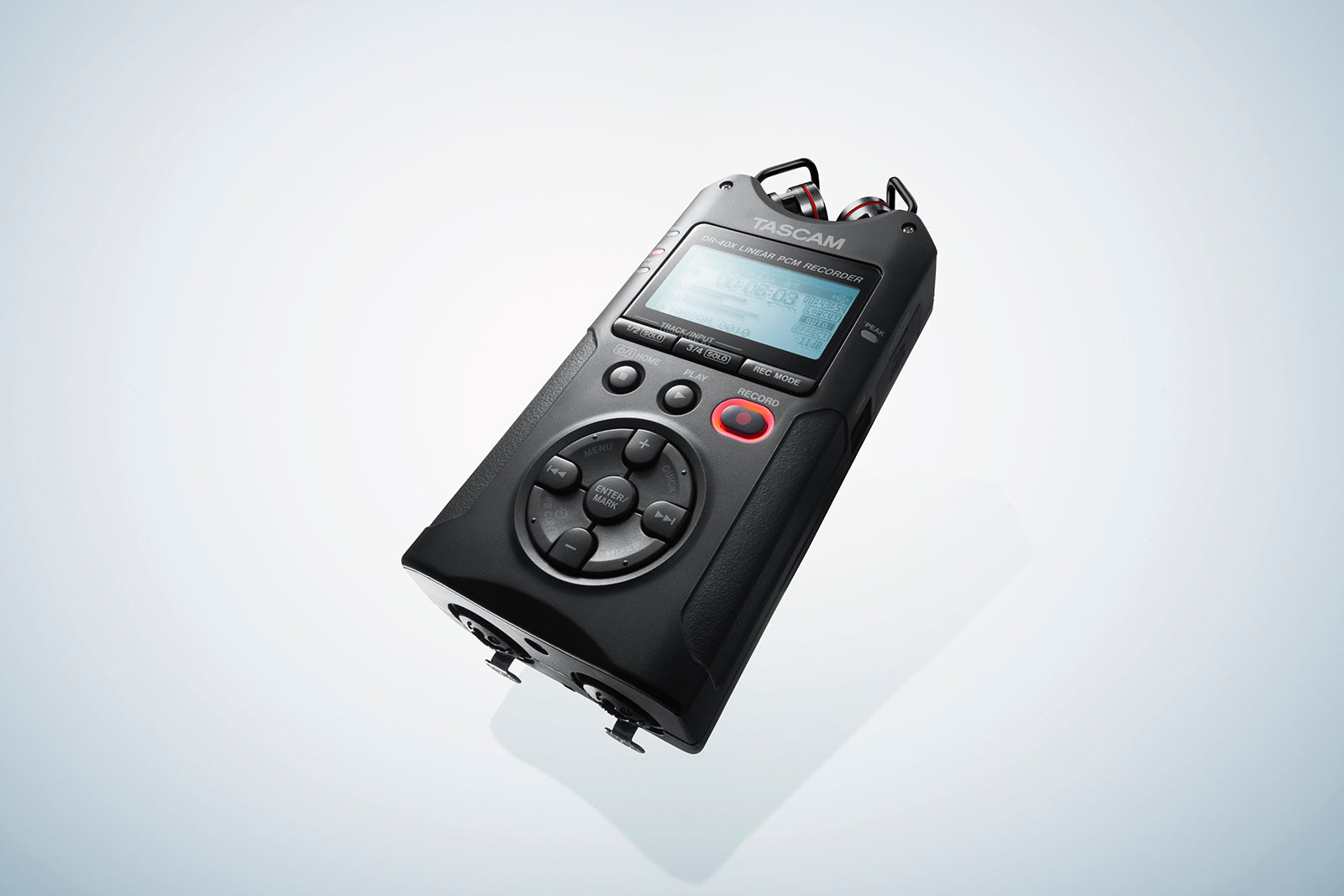

Tascam DR-40X 結合專業錄音質素同便攜設計，最啱樂手、Podcaster、影音製作人同記者使用。內置可調式立體聲電容咪，高音壓環境下依然保持清晰聲音；同時支援 A-B / X-Y 模式，靈活應對唔同錄音場景。

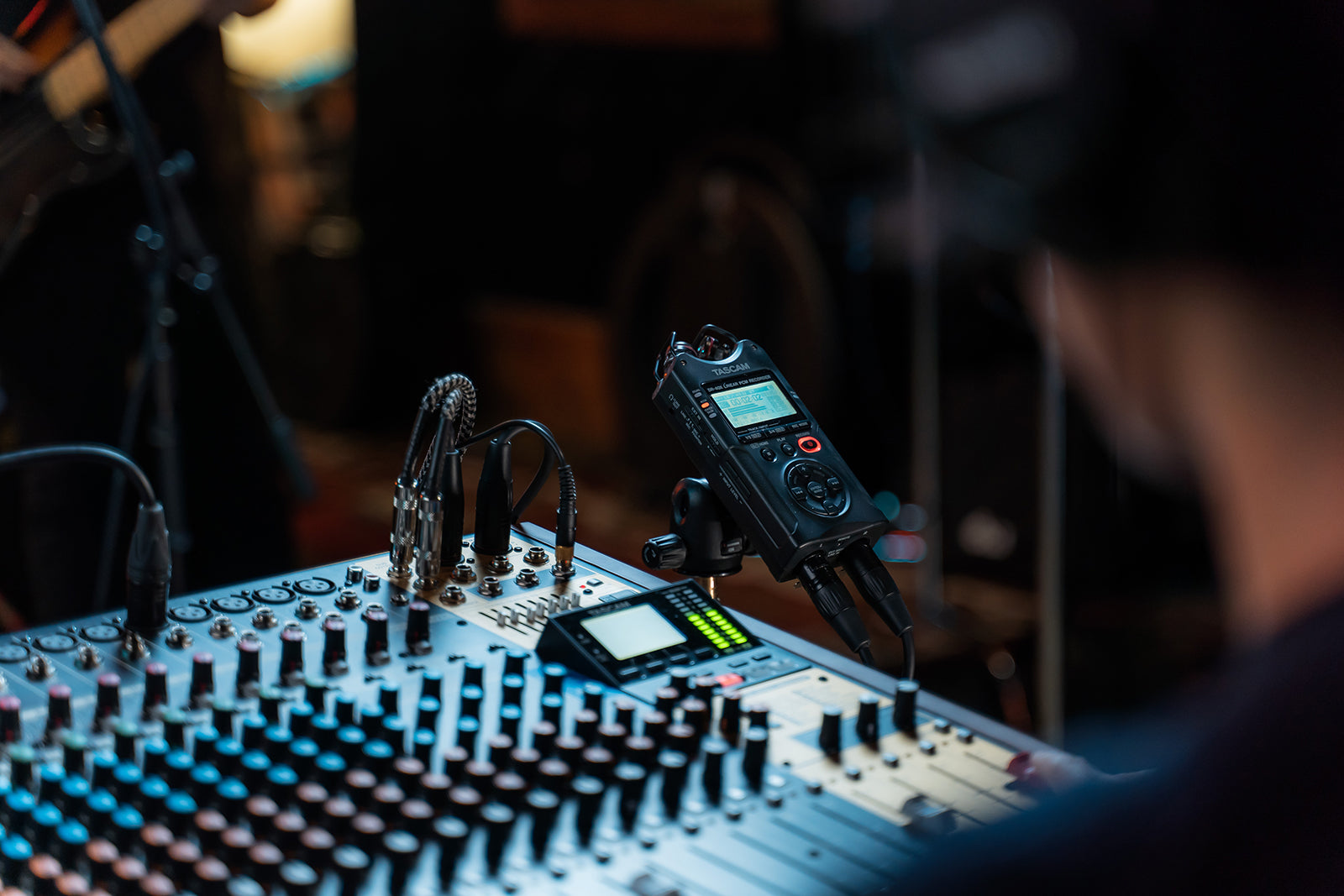

機身設有 XLR/TRS 平衡輸入，提供 +48V 幻象電源，方便接駁各類咪高峰或混音台。

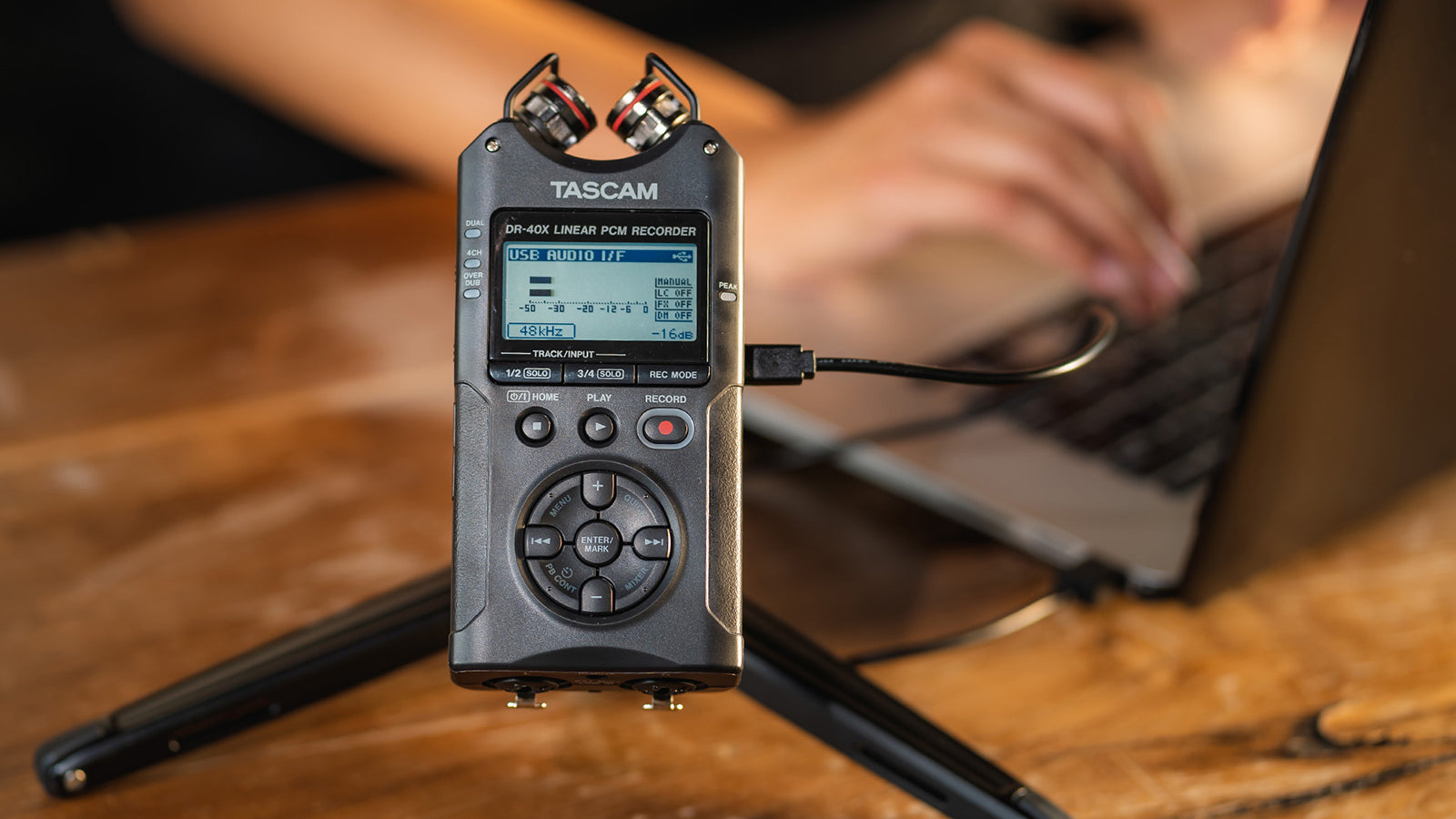

透過 USB 連接電腦或手機，DR-40X 即可變身成 2 入／2 出音頻介面，適合直播、網上會議或者在家創作。
- - - -
本購買包括：
-
主機 × 1
-
AA 鹼性電池 × 3
-
支撐腳架（Tilt foot） × 1
TECHNICAL SPECS
Recording Media
-
SD card (64MB to 2GB)
-
SDHC card (4GB to 32GB)
-
SDXC card (up to 128GB)
File System
-
FAT16/32
-
exFAT
Recording File Format
-
WAV / BWF
-
Sampling Frequency: 44.1k / 48k / 96k Hz
-
Bit-depth: 16 / 24-bit
-
-
MP3
-
Sampling Frequency: 44.1k / 48k Hz
-
Recording Bit-rate: 32k / 64k / 96k / 128k / 192k / 256k / 320k bps
-
Playback Bit-rate: 32k to 320k bps, VBR, ID3TAG Ver. 2.4
-
Number of Channels
-
4-channel (2 Stereo)
Playback Speed Control
-
0.5 to 2.0 times (in 0.1 increments) 44.1k/48kHz only
Built-in Microphone
-

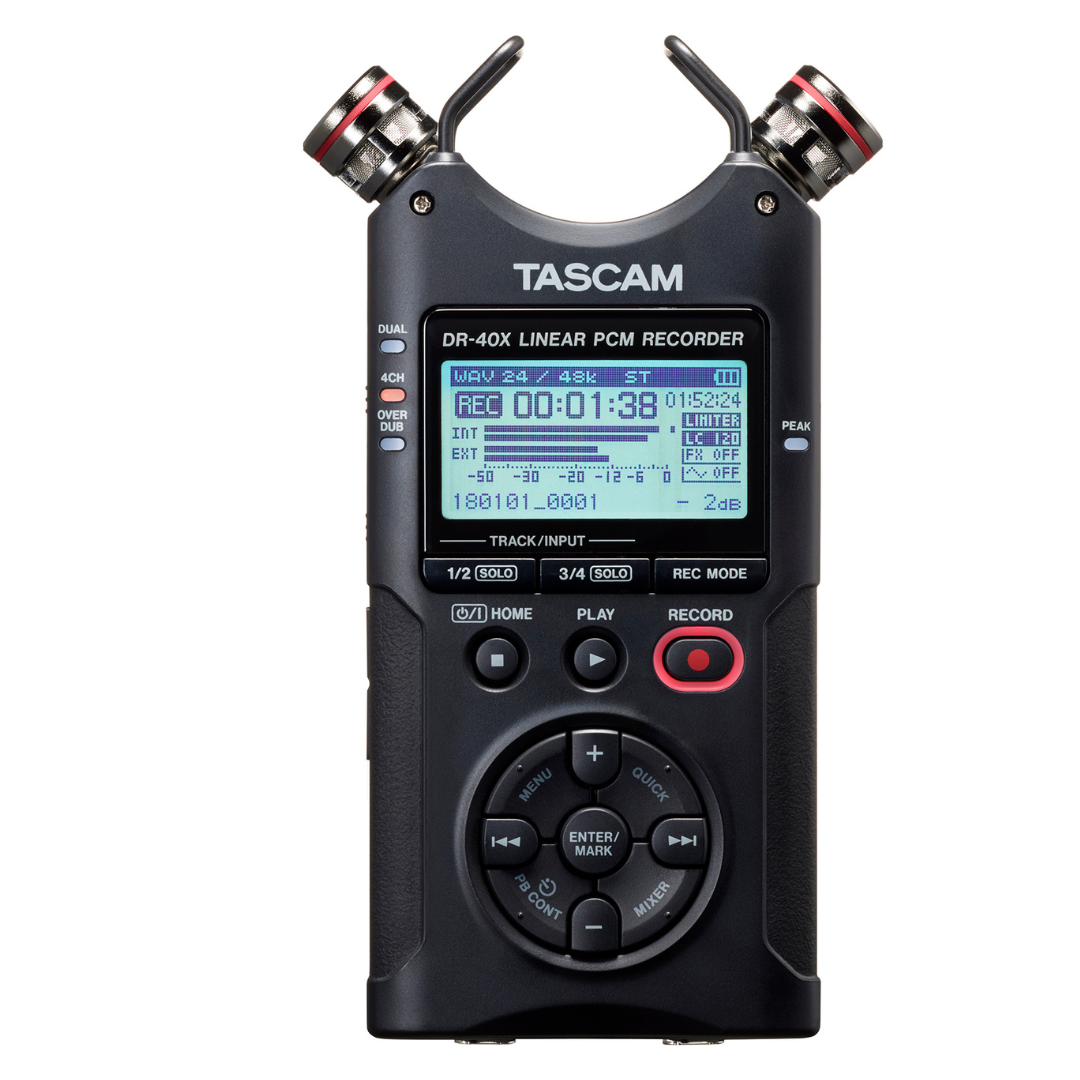

Unidirectional, Stereo (switchable between A-B and X-Y positions)

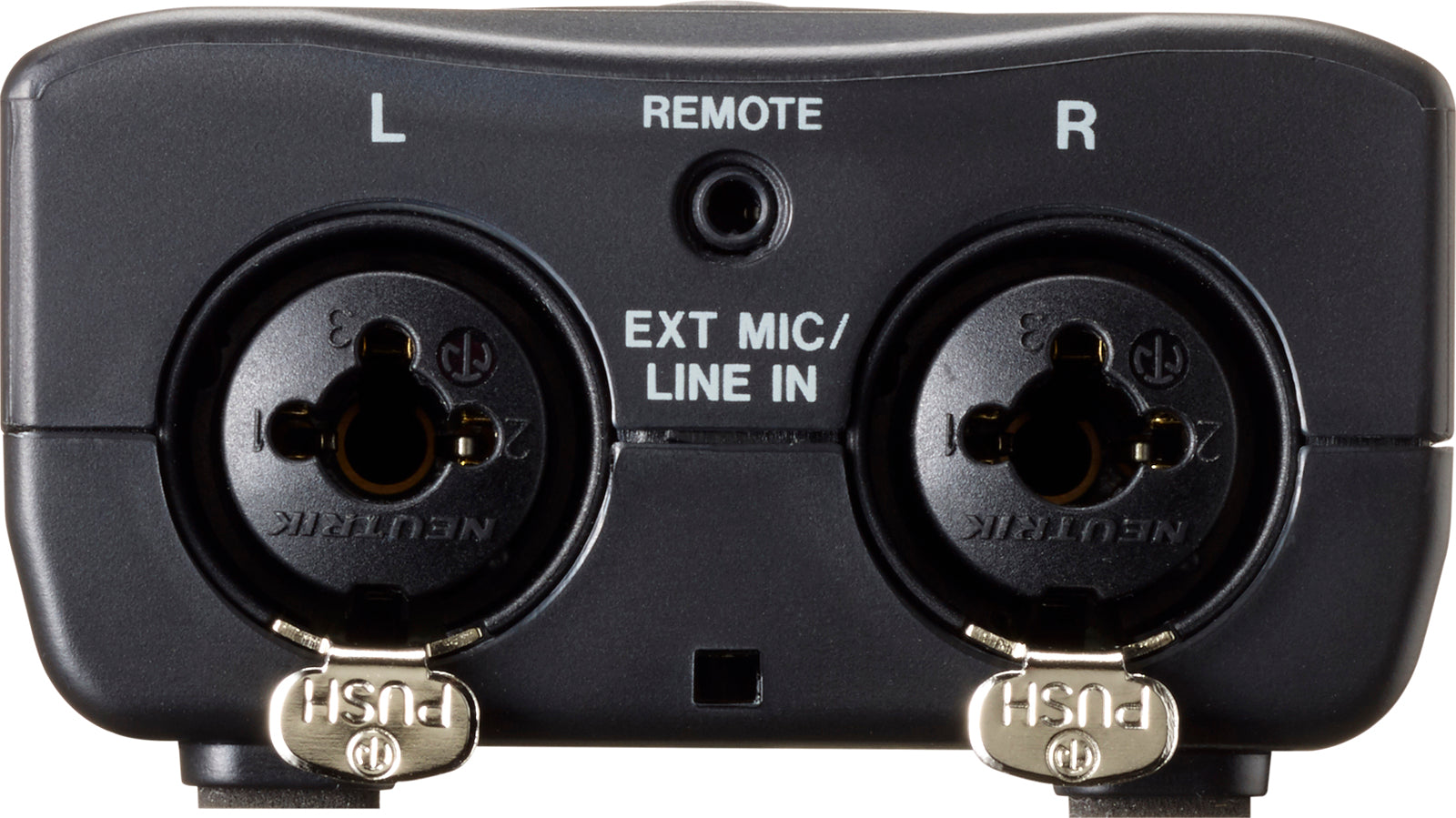

EXT MIC/LINE IN
-
Connector: XLR/TRS Combo jack (1: GND, 2: HOT, 3: COLD)
-
Nominal Input Level: -19dBV (MIC) / +4dBu (LINE)
-
Maximum Input Level: -3dBV (MIC) / +20dBu (LINE)
-
Input Impedance: 2.2kΩ (MIC) / 10kΩ (LINE)
PHONES/LINE OUT
Connector
-
1/8" (3.5mm) Stereo Mini jack (Unbalanced)
For LINE connection
-
Nominal Output Level: -14dBV (10kΩ load)
-
Maximum Output Level: +2dBV (10kΩ load)
-
Output Impedance: 12Ω
For Headphones connection
-
Maximum Output Power: 20mW + 20mW (32Ω load)
USB
-
Connector: USB Micro B-type
-
Standard: USB2.0 HIGH SPEED
-
Features:
-
Mass Storage Class
-
Audio Interface (44.1kHz, 48kHz)
-
Built-in Speaker
-
0.3W, Mono
Low-cut Filter
-
40 / 80 / 120Hz
Chromatic Tuner
-
C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)
Effector
-
6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2)
Tripod Attachment
-
1/4" Tripod attachment screw-hole
Power
-
3 AA Batteries
-
USB bus power
-
AC 100 to 240V (optional AC Adapter)
Power Consumption
-
1.7 W (Max)
Battery Operation Time (Recording)
-
Alkaline (EVOLTA): approx. 18 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
-
Ni-MH (eneloop): approx. 16 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Dimensions (W×H×D)
-
2.75" × 6.1" × 1.37" / 70 × 155 × 35 mm
Weight
-
8.3 oz. / 213 g
Audio Performance
Frequency Response
-
Fs 44.1kHz: 20Hz to 20kHz, +0/-1dB (EXT IN to LINE OUT, JEITA)
-
Fs 48kHz: 20Hz to 22kHz, +0/-1dB (EXT IN to LINE OUT, JEITA)
-
Fs 96kHz: 20Hz to 40kHz, +0/-1dB (EXT IN to LINE OUT, JEITA)
Total Harmonic Distortion
-
0.01% or less (Fs 44.1k/48k/96kHz, EXT IN to LINE OUT, JEITA)
Signal-to-Noise Ratio
-
94 dB or higher (Fs 44.1k/48k/96kHz, EXT IN to LINE OUT, JEITA)
Computer System Requirements
Windows
-
Compatible computers: Windows computer with a USB 2.0 (or higher)
Mac
-
Compatible computers: Mac with a USB 2.0 (or higher)
-
Verified with Intel and Apple Silicon (M1 and M2) hardware
