TouchMix-8是一款功能強大、體積小巧的混音器,提供了世界頂級大型混音台的特性、功能和音質,卻以一種高度緊湊和便攜的方式包裝,小到可以作為隨身行李攜帶。
它非常適合樂隊和AV製作專業人士使用,通過提供嚮導、預設和其他有益工具,可以幫助有經驗的音頻專業人士和新手快速輕鬆地獲得出色的效果。
TouchMix-8提供14個混音通道(8個麥克風/線路,4個線路,立體聲USB)和6個輸出,為信號管理提供了充足的靈活性,同時還具有諸如A類麥克風前置放大器、反饋抑制和房間調音嚮導、實時分析儀(RTA)和14通道直接錄製到外部驅動器等高級功能,使其同時勝任專業現場音響或錄音工具。
TouchMix的觸摸和旋轉界面可以提供對衰減器和混音參數的觸覺控制,同時也提供了與混音器的硬件連接。通過Wi-Fi在iOS®或Android設備上複製混音功能和顯示,提供了便攜的無線連接以及對混音功能的額外控制。TouchMix-8配備USB Wi-Fi適配器和便攜包。
主要特點包括:
- 電容式觸摸屏提供大量屏幕信息,同時也提供自信的手動控制
- 120個預設值提供常用樂器和麥克風的實際現場音響設置
- 簡單和高級模式提供基本或全面的控制
- 反饋抑制和房間調音嚮導簡化了複雜的均衡任務
- 實時分析儀(RTA)提供通道音色平衡和房間響應的即時顯示
- 4個輔助輸出提供充足的監視器配置選項
- 14通道直接錄製到硬盤 - 在不需要外部計算機的情況下捕捉和回放表演
- 直接從USB播放MP3
- 內置多語言用戶指南
- 直接從互聯網下載未來的升級...
Technical Spec:
Display: 178 mm (7 inch) diagonal color TFT, capacitive touch sensing Inputs:
- Total: 14
- Mic/Line: 8 (4 XLR, 4 XLR combo)
- Line: 2 Stereo (1/4" TRS)
- Stereo USB: Stereo USB / MP3 playback
Channel Processing:
- EQ: 4-band Parametric EQ with Hi/Low Shelving option, variable 24 db/octave HPF and LPF
- Dynamics: Gate, Compressor
- Delay: Delay (100 msec max)

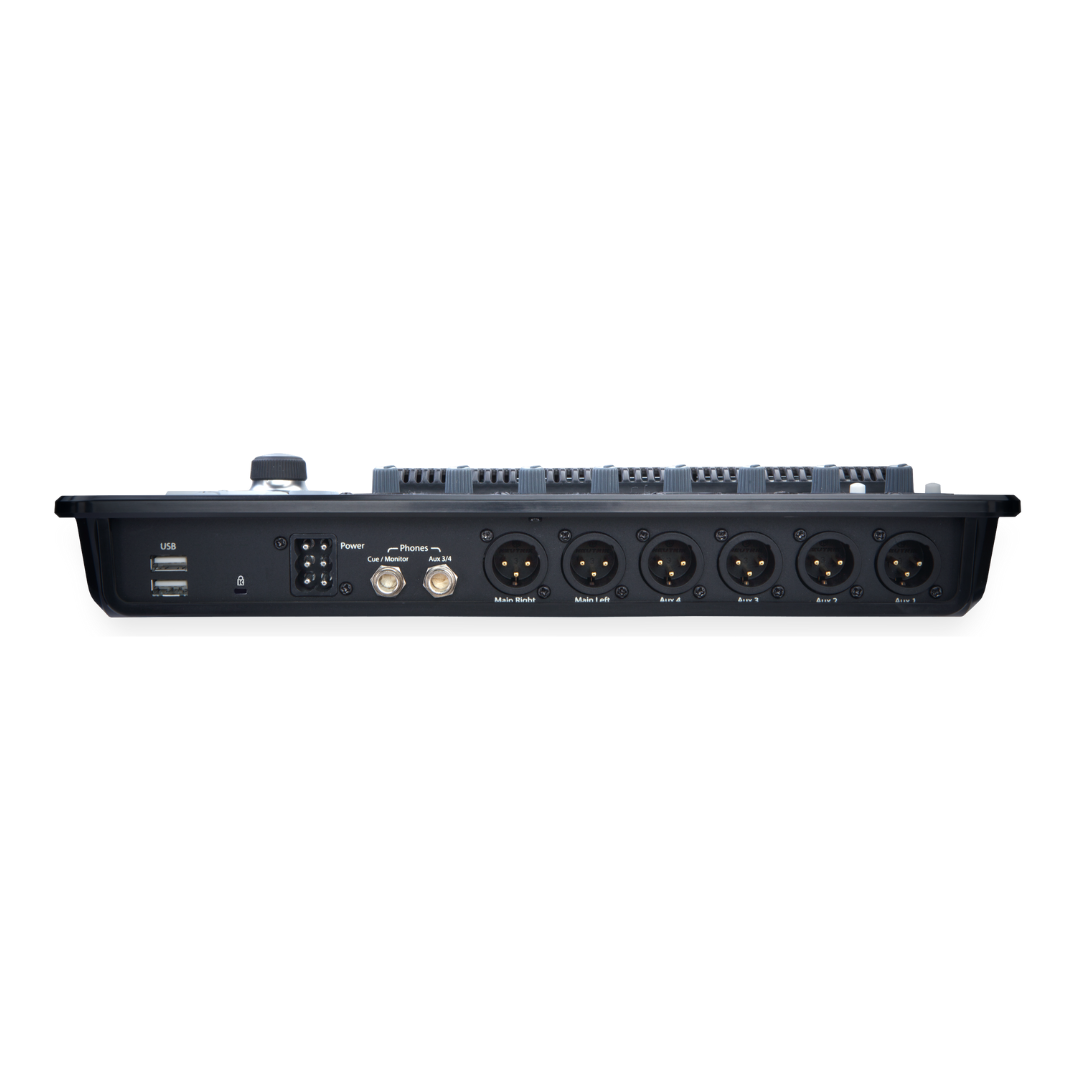

Outputs:
- Total: 6
- Main L/R: 2 (XLR, line-level)
- Aux: 4 (XLR, line-level)
- In-ear Monitor (Stereo): 1 (TRS, 16 ohm min. impedance, from Auxes 3/4)
- Cue: 1 (Stereo, TRS, line or headphone, 16 ohm min. impedance)
Output Channel Processing:
- EQ: 1/3 octave GEQ, 6-band Parametric EQ, Variable High- and Low-Pass Filters
- Anti-Feedback Filters: 8-band Anti-Feedback Filters
- Dynamics: Limiter
- Delay: 100 msec
Recording / Playback:
- Multi-Track: 14 × 14 tracks direct to hard drive
- MP3: Stereo USB / MP3 playback
Effects:
- 4 simultaneous, professional effects engines including Reverb, Echo, Delay, Chorus, Pitch Shift
Real Time Analyzer (RTA):
- 1 (1/3 octave. Assignable to channels or user selectable source)
Preset Memory:
- 99 User Scenes, 120 Factory Presets, 99 User Presets
Digital Connections:
- 2 USB A connectors
External Control:
- TouchMix-8/16 Control App for iOS and Android devices controls all mixer functions via Wi-Fi
Dimensions (Mixer only):
- 56 × 333 × 245 mm (2.2 in × 13.1 in × 9.6 in)
Weight (Mixer only):
- 1.95 kg / 4.3 lb
Power Requirements:
- 42 W, 100 - 240 VAC, 50 - 60 Hz
Sampling Frequency:
- Selectable 44.1 kHz or 48 kHz
Internal Processing:
- 32-bit floating point
THD:
- <0.005%, +4 dBu; 20 Hz-20 kHz, unity gain, any input to any output
Frequency Response:
- 20 Hz-20 kHz +/-0.5 dB, any input to any output
Dynamic Range:
- 105 dB
Equivalent input Noise:
- -126 dBu
Residual Output Noise:
- -86 dBu
Crosstalk:
- -80 dB
S/N Ratio:
- -94 dB
Gain (Mic Inputs)
- 75 dB (60 dB analog, 15 dB digital)
Maximum input Level:
- +16 dBu (Mic/Line inputs, XLR), +26 dBu (Mic/Line inputs, TRS), +22 dBu (Stereo inputs)
Maximum Output Level:
- +22 dBu (all line-level outputs)
Phantom Power:
- 48 v, all mic inputs, individually switchable
