本產品為香港代理行貨，享有 QSC 香港行貨保養，詳情請參考下面 【保養資料】

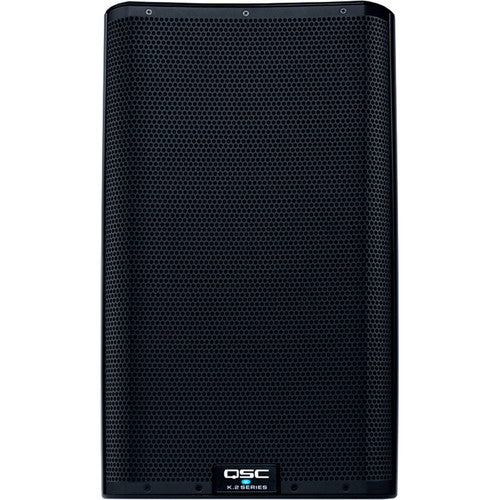

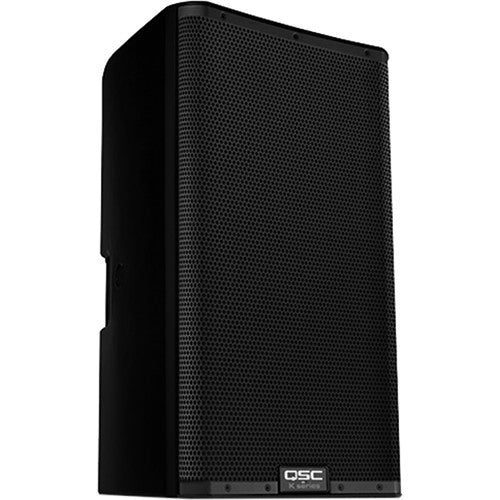

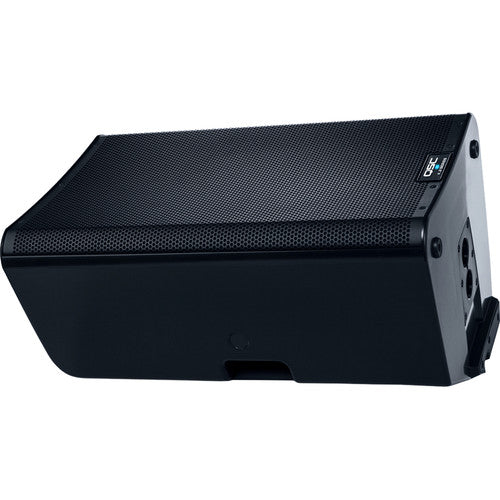

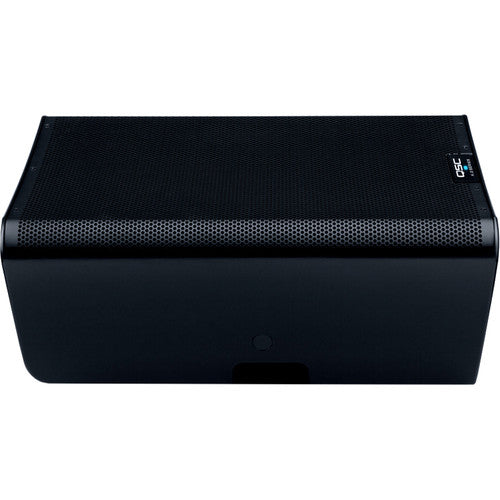

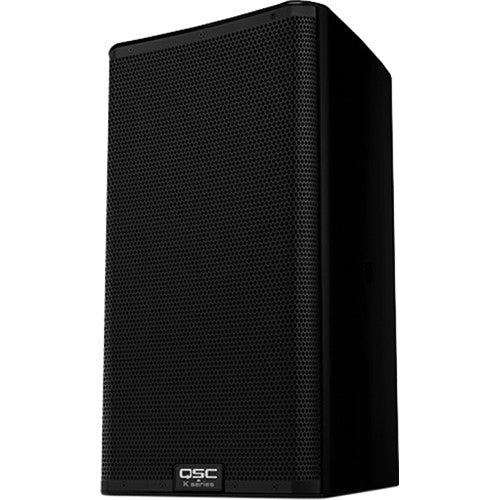

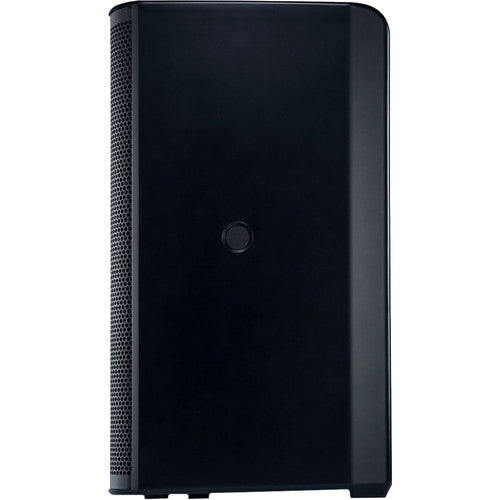

QSC K12.2 12吋強力音箱是一款頂級的攜帶式音響系統，適合各種應用場合，如音樂會、演講、派對等。其高品質的音效和強大的功率輸出，使其成為最受歡迎的攜帶式音箱之一。
此音箱採用12吋低音 DRIVER和1.4吋高音DRIVER，提供清晰、細膩的音效。同時，其2000瓦特的功率輸出，能夠滿足大型場合的音效需求。
本購買包括：K12.2音箱、電源線、用戶手冊
- - - -
SPECIFICATIONS
Configuration: Multi-purpose, 2-way active loudspeaker
LF Transducer: 305 mm (12-inch), cone
HF Transducer: 35.6 mm (1.4-inch) titanium diaphragm compression driver
Frequency Response (-6 dB): 50 Hz - 20 kHz
Frequency Range (-10 dB): 45 Hz - 20 kHz
Nominal Coverage Angle: 75° Axisymetric
Maximum Rated SPL1:
- 132 dB @ 1 M (peak)
- 126 dB @ 1 M (continuous)
Amplifier:
- Type: Class D
-
Power:
- Peak: 1800 W (LF), 225 W (HF)
Cooling: Low-noise, variable speed fan
Controls:
- Power
- 3 × Level
- Rotary encoder (push)
- 2 × selection buttons
Indicators:
- Monochrome LCD Display: 1.75-inch x 1-inch (45 mm x 25.4 mm)
- 2 × Power LED (front and rear)
- 3 × Input Signal LED
- Input A Mic selected LED
- Input B Hi-Z selected LED
- Limiter active LED

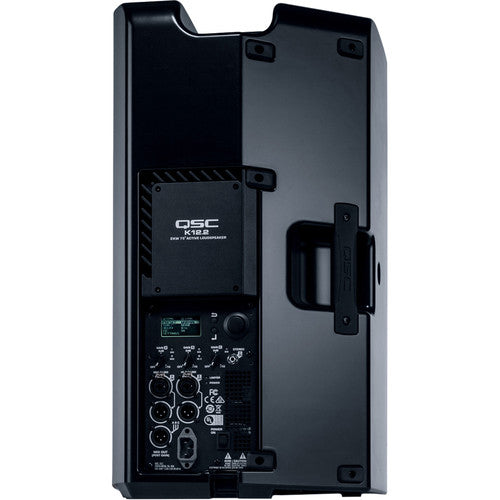

Connectors:
- 2 × locking XLR/F ¼⁻ᶦⁿᶜʰ combo (Mic/Line Input and Hi-Z/Line Input)
- 1 × 3.5 mm TRS (Stereo Input)
- 2 × XLR/M (Loop-thru Output)
- 1 × XLR/M (Mix Output)
- 1 × locking IEC power connector
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8th Power2:
- 100 VAC, 2.1 A
- 120 VAC, 1.9 A
- 240 VAC, 1.1 A
AC Power Consumption - Standby: 0.2 A at any voltage

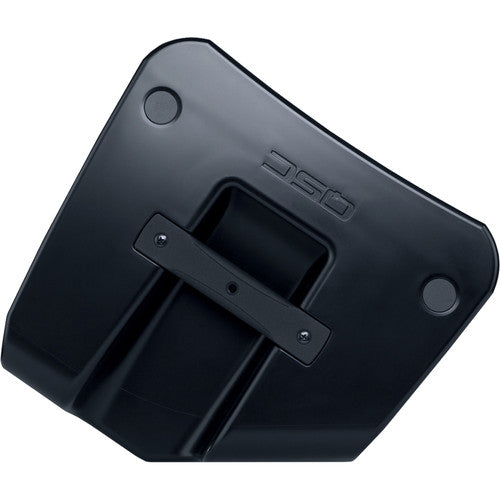

Enclosure Details:
- Enclosure: Impact Resistant ABS

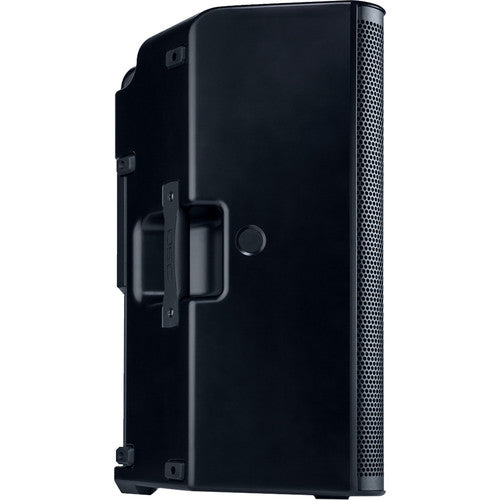

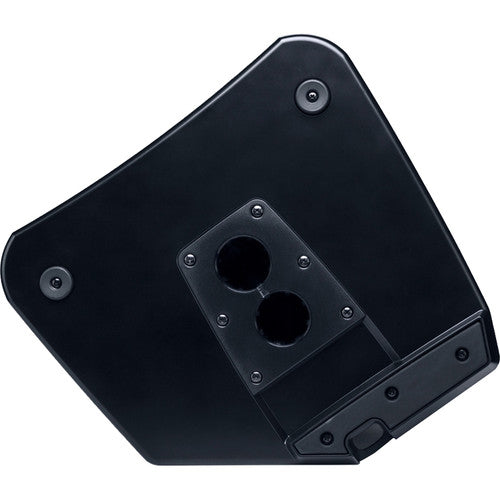

- Attachment Points: 2 × M10 threaded inserts plus Pull-Back
- Color: Black (RAL 9011)
- Grille: 18 Gauge powered coated steel, internal cloth lining
Speaker Dimensions (HxWxD):
- 602 × 356 × 350 mm
- 23.7 × 14 × 13.8 in
Carton Dimensions (HxWxD):
- 645 × 470 × 464 mm
- 25.4 × 18.5 × 18.3 in
Net Weight: 17.7 kg / 39 lb
Shipping Weight: 21.7 kg / 47.8 lb
