本產品為香港代理行貨，享有 QSC 香港行貨保養，詳情請參考下面 【保養資料】

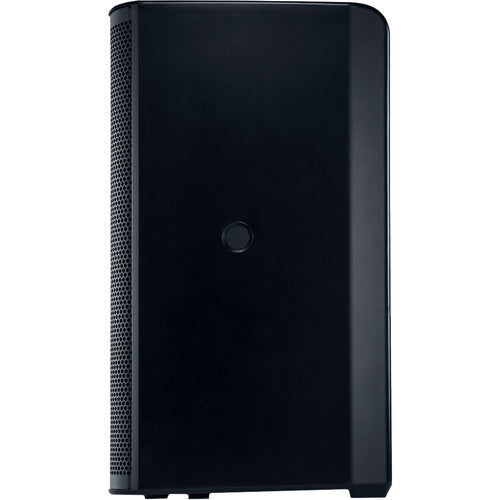

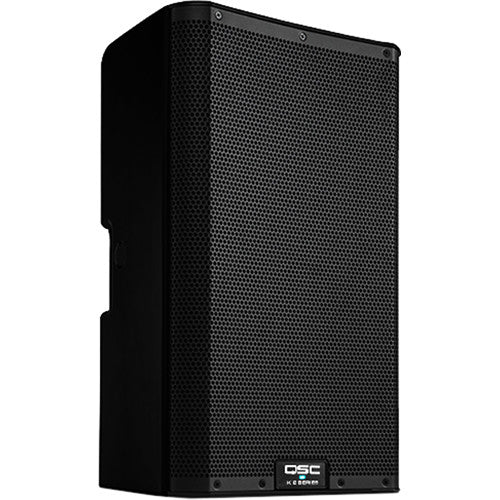

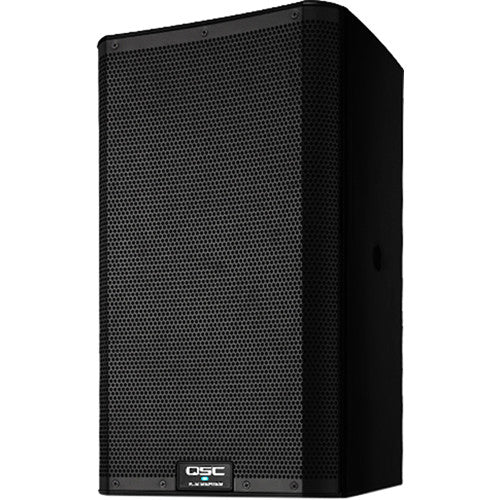

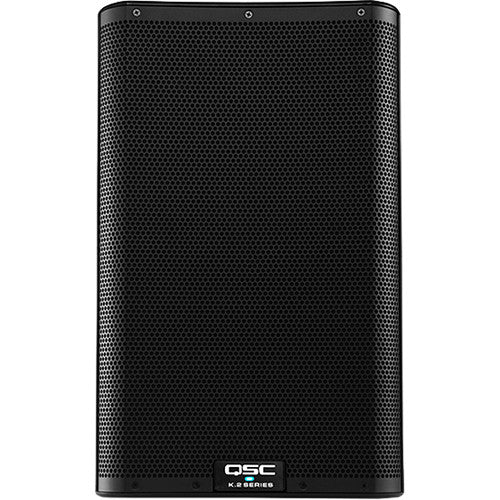

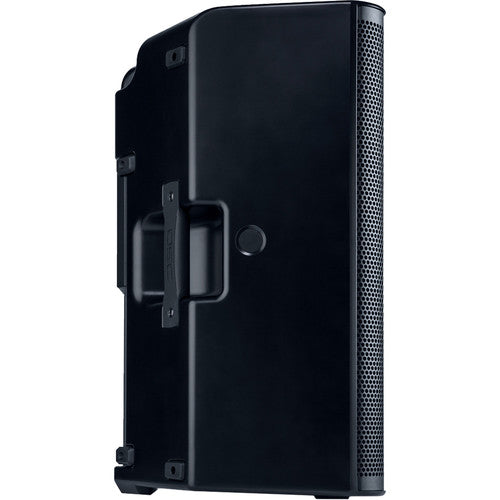

QSC K10.2 是一款專業級別的有源便攜式PA喇叭，結合了性能、耐用性和多功能性的完美平衡，非常適合各種應用場景，包括現場音樂表演、企業演講、大型會議和其他專業音頻需求。這款喇叭配備了10吋低音單元和高效能雙通道D類擴音器，能夠提供最高達2000W的峰值輸出功率，確保卓越的聲音清晰度和無與倫比的動態範圍，無論是高音還是低音都表現出色。

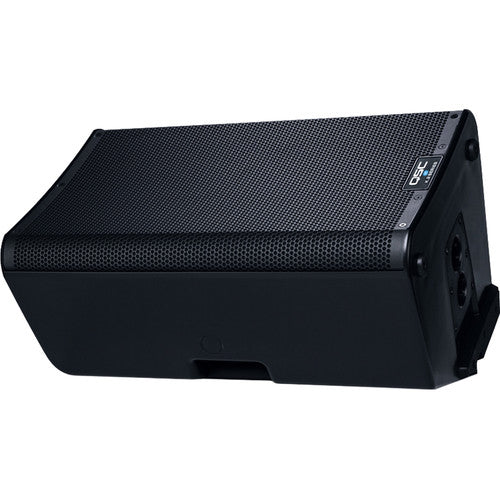

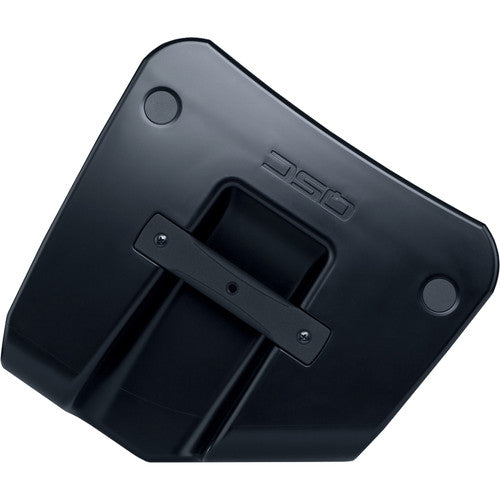

K10.2 擁有用戶友好的LCD介面，提供多種應用預設模式（包括舞台監聽、樂器放大），可輕鬆調整EQ，滿足專業用家的不同需求。此外，其堅固的ABS外殼設計以及內置提手，既輕巧便攜又經久耐用，非常適合流動演出和固定安裝。
此產品內包含以下配件：
- QSC K10.2 主喇叭
- 電源線
- 使用手冊
不論是尋求高質量聲音還是靈活安裝解決方案，QSC K10.2 為您帶來領先業界的音頻表現，成為您最佳之選。
- - - -
SPECIFICATIONS
Configuration: Multi-purpose, 2-way active loudspeaker
Transducers
LF Transducer: 254 mm (10-inch), cone
HF Transducer: 35.6 mm (1.4-inch) titanium diaphragm compression driver
Frequency Response
(-6 dB): 56 Hz - 20 kHz
(-10 dB): 50 Hz - 20 kHz
Coverage
Nominal Coverage Angle: 90° Axisymmetric
Maximum Rated SPL
130 dB @ 1 M, peak
124 dB @ 1 M, continuous
Amplifier
Type: Class D
Peak Power: 1800 W (LF), 225 W (HF)
Cooling: Low-noise, variable speed fan
Controls
- Power
- 3 × Level
- Rotary encoder (push)
- 2 × selection buttons
Indicators
- Monochrome LCD Display: 45 mm × 25.4 mm (1.75-inch x 1-inch)
- 2 × Power LED (front and rear)
- 3 × Input Signal LED
- Input A Mic selected LED
- Input B Hi-Z selected LED
- Limiter active LED

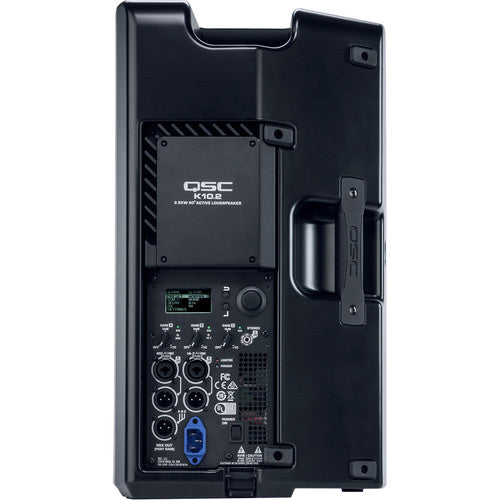

Connectors
- 2 × locking XLR/F ¼ inch combo (Mic/Line Input and Hi-Z/Line Input)
- 1 × 3.5 mm TRS (Stereo Input)
- 2 × XLR/M (Loop-thru Output)
- 1 × XLR/M (Mix Output)
- 1 × locking IEC power connector
AC Power Input
- Universal power supply: 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption
1/8th Power:
- 100 VAC: 2.1 A
- 120 VAC: 1.9 A
- 240 VAC: 1.1 A
AC Power Consumption - Standby
0.2 A at any voltage
Enclosure Details
- Enclosure: Impact Resistant ABS

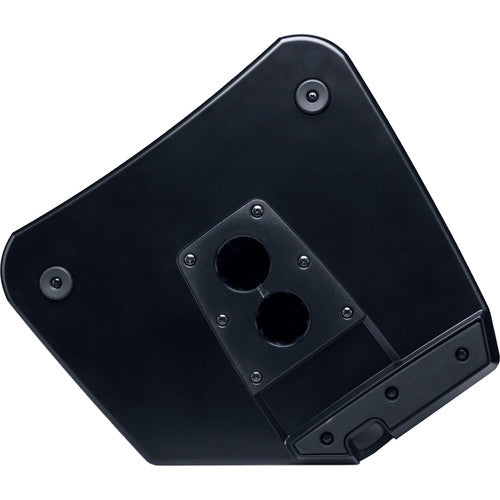

- Attachment Points: 2 × M10 threaded inserts plus Pull-Back
- Color: Black (RAL 9011)
- Grille: 18 Gauge powered coated steel, internal cloth lining
Speaker Dimensions (H×W×D)
- 519 × 320 × 300 mm
- 20.4 × 12.6 × 11.8 in
Carton Dimensions (H×W×D)
- 570 × 440 × 406 mm
- 22.5 × 17.3 × 16 in
Weights
Net Weight: 14.5 kg / 32 lb
Shipping Weight: 17.6 kg / 38.8 lb
