JBL EON712 是一款全新設計的12吋有源喇叭，屬於JBL EON700系列，這一系列自1995年以來一直是市場上的佼佼者，以其卓越的性能和創新技術而聞名。
EON712不僅繼承了EON系列的優良傳統，還在聲學設計和數字信號處理（DSP）方面進行了重大升級，確保提供無與倫比的音質和靈活性。這款喇叭採用高效能的12吋低音揚聲器和高頻壓縮驅動單元，能夠在各種環境中提供清晰且強勁的聲音。無論是現場演出、DJ活動還是會議講座，EON712都能輕鬆應對，並滿足專業音響需求。其內建的藍牙功能使得無線連接變得簡單方便，讓使用者可以輕鬆播放音樂。
EON712的設計考慮到了便攜性，其輕巧的外形和堅固的結構使得搬運和安裝都非常方便。此外，該喇叭還配備了多種輸入選項，包括XLR、TRS和RCA接口，確保兼容各類音源設備。
包裝內容包括：
- JBL EON712 12吋有源喇叭
- 電源線
- 使用手冊
- - - -
PRODUCT HIGHLIGHTS
- Custom Woofer: 12-inch woofer designed specifically for enhanced sound quality.
- Compression Driver: Features a 2414H compression driver for improved audio clarity.
- High-Frequency Horn: Redesigned for better sound dispersion and performance.
-
Power Output:
- Peak: 1,300W
- RMS: 650W
-
Frequency Response:
- -10 dB: 50Hz - 20kHz
- -3 dB: 60Hz - 20kHz
- Max SPL: Achieves a maximum sound pressure level of 127 dB.
-
Dispersion Pattern:
- Horizontal: 100°
- Vertical: 60°
-
Audio Inputs/Outputs:
- 2 XLR Combo inputs
- 1 XLR passthrough
- Advanced DSP Features: Includes automatic feedback suppression, ducking, a 100ms speaker delay, and parametric EQ.
- Built-in Mixer: Comes with a 3-channel digital mixer for versatile audio control.
- User-Friendly Display: Color backlit LCD screen for easy access to functions.
- App Control: Compatible with the universal JBL Pro Connect app for remote management.
- Bluetooth Streaming: Supports Bluetooth 5.0 for wireless audio streaming and control.
- Durable Construction: Made with a robust polypropylene cabinet and metal grille for longevity.

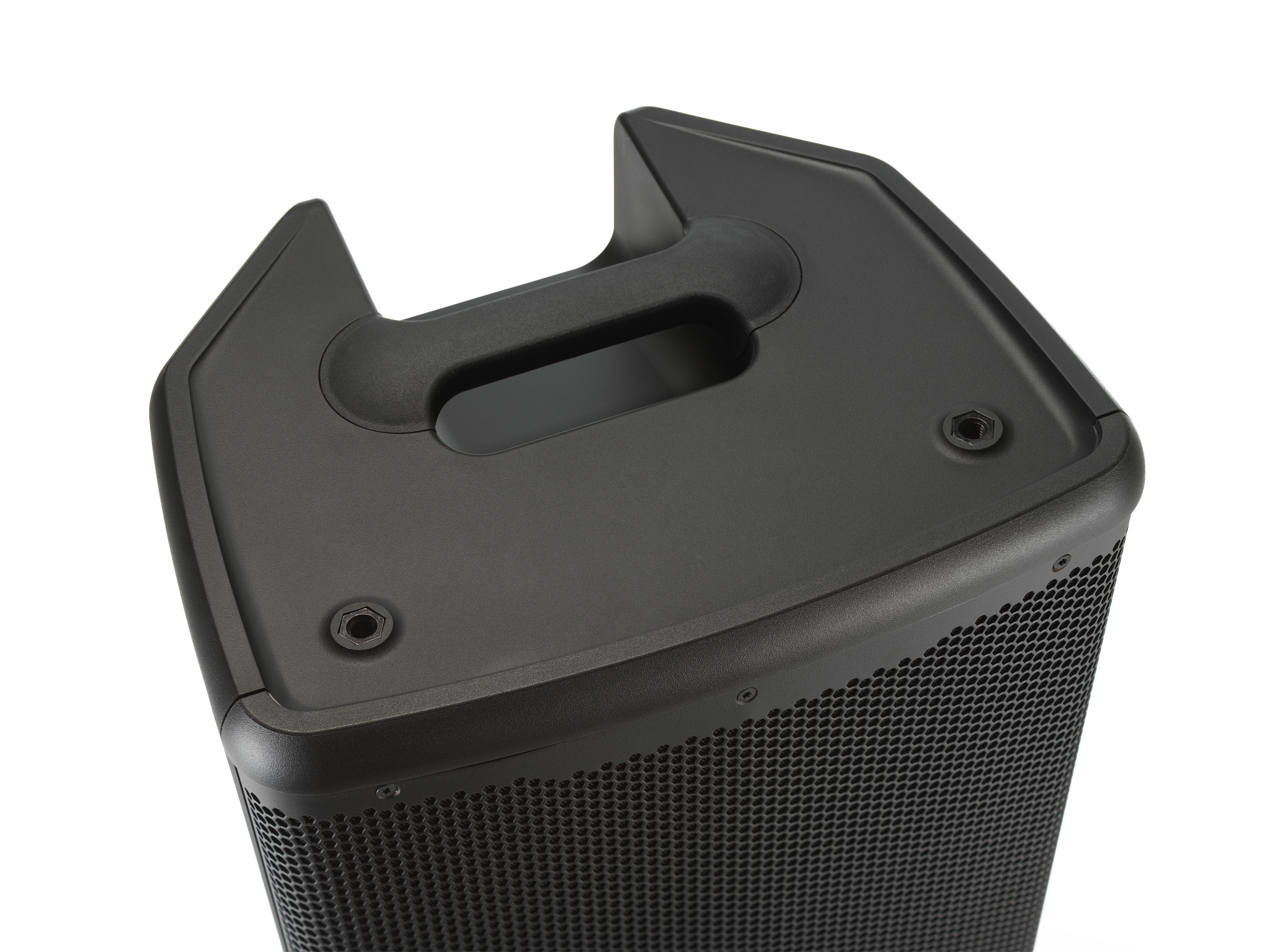

- Transport Handles: Two ergonomic handles make it easy to carry.
- Mounting Options: Built-in pole mount and optional EON700 Universal Yoke Mount for flexible system configurations.
- Stackable Design: Cabinets can be stacked for convenient storage.
- Weight: Net weight of 14.5 kg (32 lbs.) for manageable portability.
- - - -
- System Type: 12IN Powered Loudspeaker
- Woofer Model: 712G
- Woofer Size: 12"
- Woofer Magnet: Ferrite
- Woofer Voice Coil: 2"
- Tweeter Model: 2414H Compression Driver
- Tweeter Size: 1"
- Tweeter Magnet: Neodymium
-
Transducer Impedance:
- LF: 4 ohm rated
- HF: 8 ohm rated
- Max SPL: 127 dB @ 1m/4Pi
-
Frequency Range:
- -10: 50 Hz - 20 kHz
- -3: 60 Hz - 20 kHz
- Horizontal Dispersion: 100°
- Vertical Dispersion: 60°
-
Power Rating:
- Peak: 1300W
- RMS: 650W
-
AC Power Input:
- 100V-120V or
- 220V-240V
- Cooling: Passive
-
LED Indicators:
- 1 Power LED
- 1 Limit LED
- 1 Front LED
- 2 Signal/SSM LEDs
-
Input Impedance:
- Unbalanced: 50k
- Balanced: 100k
- Input Gain: -∞ to +36 dB
- Crossover Frequency: 2 kHz
-
I/O Ports:
- 2 XLR Combo Jacks / BT
- 1 XLR M Thru
- Cabinet Material: PP +10% Talc
-
Grille Material:
- 16GA perforated steel
- Acoustically transparent black cloth backing
-
Suspension/Mounting Options:
- 4 M10 Suspension points
- 36mm Pole Socket
- Universal yoke bracket holes
-
Handles:
- 2 handles
- Cable channel on bottom
-
Net Weight:
- 14.6 kg (32.19 lbs.)
-
Gross Weight:
- 18.4 kg (40.57 lbs.)
-
Product Dimensions (HxWxL):
- 670 x 381 x 328 mm (26.38 x 15.0 x 12.91 in.)
-
Shipping Dimensions (HxWxL):
- 684 x 490 x 430 mm (26.93 x 19.29 x 16.93 in.)
