本產品為香港代理行貨，享有3年 Focusrite 香港行貨保養

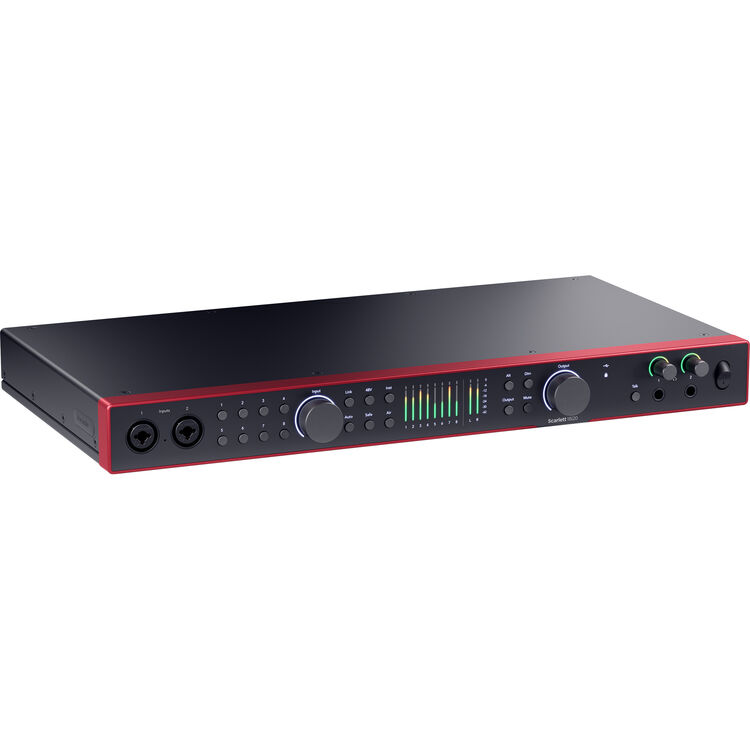

Focusrite Scarlett 18i20 是一款專為要求高的專案工作室設計的終極音頻中心。
它配備了 18 路輸入和 20 路輸出，包括八個我們最精細的超低噪音麥克風前級、線路、Hi-Z 和 MIDI 連接，可用於你的鼓、聲樂、吉他、鍵盤和合成器。
Air 模式結合了 Presence 和 Harmonic Drive，將大型錄音工作室控制台的音質帶入你的錄音中，而自動增益和防剪輯功能確保你永遠無需擔心音量問題。低延遲監聽、A/B 換 speaker 以及內建對講麥克風，都是專業級專案工作室的完美選擇。
- - - -
Key Features:
- External Power, Mac/Windows/iPadOS
- 8 Mic/Line Preamp, 2 Hi-Z Instrument In
- 2 Headphone Out, 10 Line Out
- 24-Bit / 192 kHz AD/DA Conversion
- Auto Gain and Clip Safe Modes
- Air Mode, Virtual Loopback
- Speaker Switching, Built-In Talkback Mic
- 2 ADAT + S/PDIF I/O, Wordclock Out, MIDI
- Ableton Live Lite, Hitmaker Expansion
- - - -
Features
- Eight preamps that can be controlled remotely
- Wide dynamic range of 122dB
- Features Auto Gain and Clip Safe technology
- Two different Air modes for enhanced sound
- Control your device remotely using a mobile app
- Expandable input and output options
- - - -
- 使用 Focusrite Control 2 應用程式，在工作室的任何地方完全掌控你的路由和混音偏好。
- 為音樂家調整完美的耳機混音，或將信號直接路由到外部設備，為你的混音添加最後的潤色。
- 利用兩種重新設計的 Air 模式，獲得大型控制台的音質。
Presence 模式提升了信號的高頻，使聲音在混音中更加突出。創造親密的聲樂錄音，捕捉木吉他的每個細節，讓鼓聲在高音中閃耀。 - Presence 和 Harmonic Drive 模式則加強了聲音中的中頻和聲，使其獨特的特徵在混音中更加突出。適用於吉他、聲樂或任何需要更多力度的聲音。
- 擁有高達 122dB 的極大動態範圍，錄製驚人的音效。
- - - -
TECHNICAL SPECS
- Number of Microphone Preamps: 8
- Phantom Power: Yes (Independent)
- Instrument Inputs: 2
- Line Inputs: 8
- Air Mode: Yes
- Auto Gain: Yes
- Clip Safe: Yes
- Line Outputs: 10
- Headphone Outputs: 2
- ADAT Inputs: 2 (up to 8 channels at 96kHz)
- ADAT Outputs: 2 (up to 8 channels at 96kHz)
- SPDIF Inputs: 1
- SPDIF Outputs: 1
- MIDI Inputs: 1
- MIDI Outputs: 1
- Talkback: Yes
- Loopback: Yes
- Connectivity: USB Type-C
- Protocol: USB 2.0
- Form Factor: Desktop / Rack Mountable (1U)
- Simultaneous I/O: 20 x 24 (including Loopback)
- A/D Resolution: 24-bit/192 kHz
- Bus Powered: No
- Dimensions:
- Height: 46.55mm
- Width: 259.73mm
- Depth: 442mm
- Weight: 3.304kg
- Supported Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Microphone Inputs
- Frequency Response: 20-20kHz ± 0.06dB
- Dynamic Range: 116dB (A-Weighted)
- THD+N: -100dB @ 8dB gain
- Noise EIN: -127dBu (A-Weighted)
- Maximum Input Level: 16dBu
- Gain Range: 69dB
- Impedance: 3kΩ
Variable Line Inputs
- Frequency Response: 20-20kHz ± 0.05dB
- Dynamic Range: 115.5dB (A-Weighted)
- THD+N: -100dB @ 8dB gain
- Maximum Input Level: 22dBu
- Gain Range: 69dB
- Impedance: 24kΩ
Instrument Inputs
- Frequency Response: 20-20kHz ± 0.05dB
- Dynamic Range: 113dB (A-Weighted)
- THD+N: -80dB @ 8dB gain
- Maximum Input Level: 12dBu
- Gain Range: 62dB
- Impedance: 1MΩ
Line Outputs (Balanced)
- Frequency Response: 20-20kHz ± 0.02dB
- Dynamic Range: 122dB (A-Weighted)
- THD+N: -112dB
- Maximum Output Level: 16dBu
- Impedance: 200Ω
Headphone Outputs
- Frequency Response: 20-20kHz ± 0.1dB @ 33Ω / 300Ω
- Dynamic Range: 112dB @ 33Ω
- Dynamic Range: 116dB @ 300Ω
- THD+N: -100dB @ 33Ω (Minimum)
- THD+N: -110dB @ 300Ω (Minimum)
- Maximum Output Level: 5dBu into 33Ω
- Maximum Output Level: 11dBu into 300Ω
- Maximum Output Power: 57mW into 33Ω
- Maximum Output Power: 27mW into 300Ω
- Impedance: 11Ω
Analogue to Digital Converter
- THD+N: -110dB
- Dynamic Range: 120dB
Digital to Analogue Converter
- THD+N: -115dB
- Dynamic Range: 130dB (A-Weighted)
Power
- External: 30W
What's in the Box
- Scarlett 18i20 audio interface
- 1.5m USB-C to USB-C cable
- USB-C to USB-A adaptor
- IEC power cable
